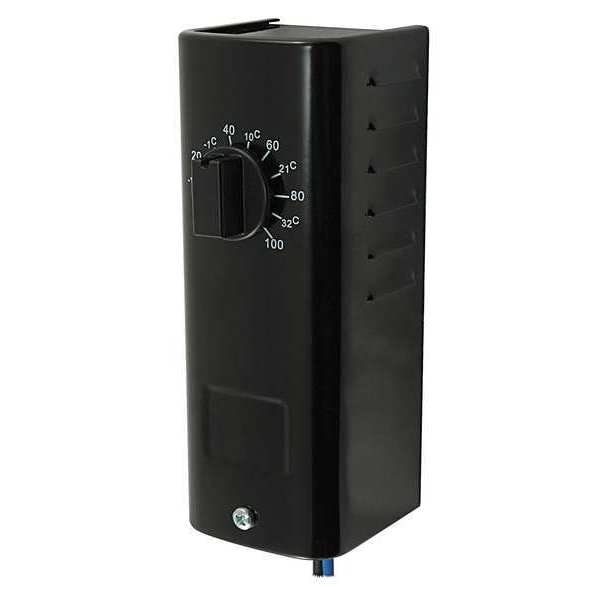

Line Volt Mechanical Tstat, Open/Close on Rise, -10 Degrees to 100 Degrees F, SPDT, 120 to 277V AC
| Switch Action | Open/Close on Rise |
|---|---|
| Voltage | 120 to 277V AC |
| Sensor Type | Bi-Metal |
| Differential | 6 Degrees to 8 Degrees F |
| Thermostat Control Range | -10 to 100 deg F |
| Switch Type | SPDT |
| Color | Gray |
| Width | 2 in |
| Height | 5-1/2 in |
| Full Load Amps @ 240VAC | 10 A |
| Thermostat Programmable | No |
| Number of Switches | 1 |
| Inductive Amps @ 120V | 13.8 A |
| Remote Sensing Capability | No |
| Thermostat Heating/Cooling | Heating, Cooling |
| Full Load Amps @ 120VAC | 15 A |
| Control Range | -10 to 100 deg F |
| Item | Line Volt Mechanical Tstat |
| Inductive Amps @ 240V | 10 A |
| Standards | UL Listed |
| Contact Rating Resistive @ 120V | 22 A |
| Depth | 2 in |
| Thermostat Voltage | 120 to 277 V AC |
| Thermostat Switch Type | SPDT |
| Contact Rating Resistive @ 240V | 22 A |
| Thermostat Item | Line Voltage Mechanical Thermostat |
| Remote Sensing Bulb Included | No |
| Thermostat Type | Line Voltage |
| Inductive Amps @ 208V | 10 A |
| Application | Heat or Cool |
| Differential Type | Adjustable |
| Overall Height | 5-1/2 in |
| Maximum Control Temperature | 100 deg F |
| Overall Depth | 2-3/16 in |
| Enclosure Finish | Powder Coated |
| Number of Cooling Stages | 1 |
| Temperature Differential | 2 Degrees F |
| Minimum Control Temperature | -10 deg F |
| Amperage | 22 A |
| Temperature Scale | Fahrenheit, Celsius |
| Contact Type | Snap Action |
| Overall Width | 2-3/16 in |
| Full Load Amps @ 120V AC | 15 A |
| Stages | 1H, 1C |
| Switch Type/Action | Open, Close, SPDT on Rise |
| Enclosure NEMA Rating | 1 |
| Full Load Amps @ 240V AC | 10 A |
| Operating Temperature Range | -10 to 100 deg F |
| Compatible System Type | Gas or Forced Air Furnaces |
| Temperature Control Range | -10 to 100 deg F |
| Maximum Operating Temperature | 100 deg F |
| Lead Length | 6 in |
| Number of Heating Stages | 1 |
| Number of Poles | 1 |
| Enclosure Material | Steel |
| Enclosure Color | Black |
| Minimum Operating Temperature | -10 deg F |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
