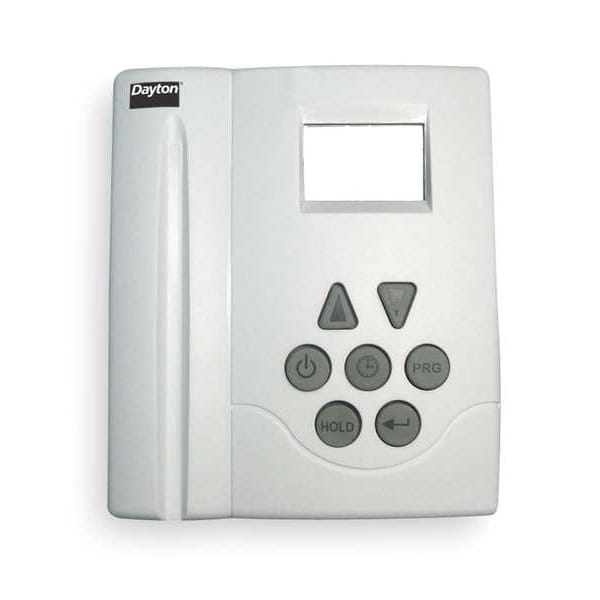

Line Voltage Thermostat, Open on Rise, 41 Degrees to 95 Degrees F, SPST, 120 V AC
| Switch Action | Open on Rise |
|---|---|
| Voltage | 120 V AC |
| Sensor Type | NTC Thermistor |
| Differential | +/- 1 Degrees F |
| Number of Relay Inputs | 1 |
| Thermostat Control Range | 41 to 95 deg F |
| Switch Type | SPST |
| Color | White |
| Width | 3-5/8 in |
| Height | 4-1/4 in |
| Thermostat Heating/Cooling | Heating |
| Agency Compliance | cETL |
| Thermostat Programmable | Yes |
| Full Load Amps @ 120VAC | 15 A |
| Thermostat Item | Line Voltage Thermostat |
| Thermostat Voltage | 120V AC |
| Depth | 1-1/4 in |
| Control Range | 41 to 95 deg F |
| Thermostat Switch Type | SPST |
| Number of Stages | 1 |
| For Use With | Heat Only: Requires 120V Power Source |
| Enclosure Type | PVC |
| Item | Line Voltage Thermostat |
| Temp. Settings per Day | 4 |
| Includes | Mounting Hardware |
| Number of Relay Outputs | 1 |
| Temp. Sensitivity | 1 deg F |
| Inductive Amps @ 120V | 3 A |
| Number of Switches | 1 |
| Standards | cETL |
| Application | Heat Only |
| Mounting | Mounting Plate 4 1/8 x 3 1/2" |
| Thermostat Type | Line Voltage |
| Control Type | Push Button |
| Overall Width | 3-5/8 in |
| Mounting Direction | Vertical |
| Housing Material | PVC |
| Electrical Connection Type | Hardwired |
| Maximum Control Temperature | 95 deg F |
| Temperature settings per day | 4 |
| Programming Capability | 7-Day |
| Overall Depth | 1-1/4 in |
| Minimum Control Temperature | 41 deg F |
| Switch Type/Action | Open, SPST on Rise |
| Overall Height | 4-1/4 in |
| Temperature Differential | 1 Degrees F |
| Housing Color | White |
| Temperature Control Range | 41 to 95 deg F |
| Compatible System Type | Electric Heating |
| Stages | 1H |
| Temperature Scale | Fahrenheit, Celsius |
| Number of Heating Stages | 1 |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
