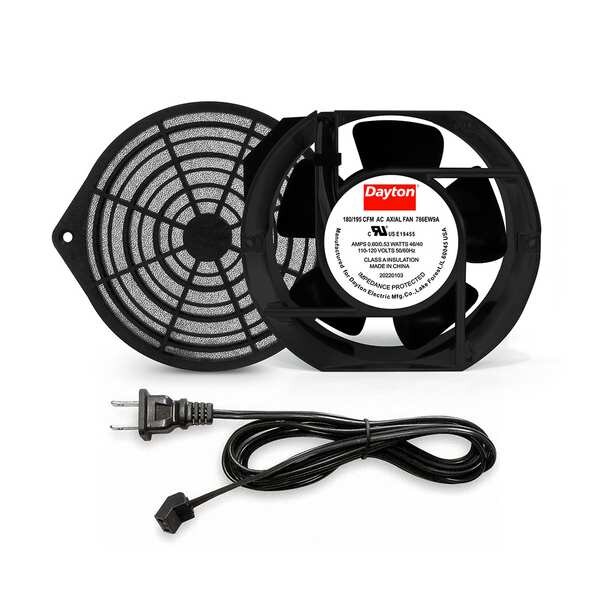

Oblong Axial Fan Kit, 120V AC, Cast Aluminum, 6 3/4 in W.
| Blade Material | Polycarbonate |
|---|---|
| CFM @ 0.000-In. SP | 180/195 cfm |
| Depth | 2 in |
| Height | 6-3/4 in |
| Housing Material | Cast Aluminum |
| Watts | 46/40 W |
| Width | 6-3/4 in |
| Includes | Fan, Filter, Plastic Guard, Cord Set with NEMA 1-15 Plug |
| Voltage | 120V AC |
| Mounting Eye O.C. | 6-3/8 in |
| Color | Black |
| Amps | 0.60/0.53 A |
| Electrical Connection - Fans | Terminals |
| Item | Oblong Axial Fan Kit |
| Sound Level | 56/60 |
| RPM | 2700/3050 RPM |
| Standards | cULus Recognized |
| Bearing Type | Ball |
| Motor Design | Shaded Pole |
| Fan Shape | Oblong |
| Environmental Applications | Equipment Cooling |
| Max. Ambient Temp. | 150 deg F |
| Motor Insulation | Class A |
| Fan Cord Length | 72 in |
| IP Rating | 20 |
| Thermal Protection | Impedance Protected |
| Mounting Position | Vertical or Horizontal |
| Hz | 50/60 Hz Hz |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
