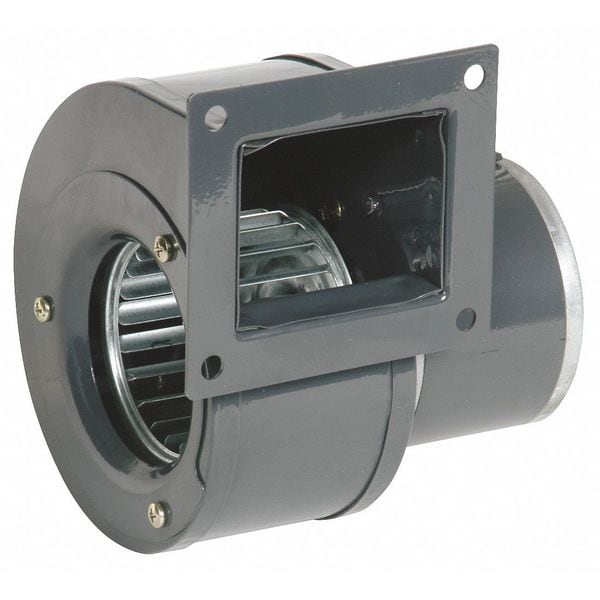

OEM Blower, Direct Drive, 3-7/8 in Wheel Dia, 149 cfm, 12V DC, 1 Phase, 1/25 hp, Open Motor
| CFM @ 0.100-In. SP | 140 |
|---|---|
| Drive Type | Direct Drive |
| Full Load Amps | 5.5 |
| Housing Material | Steel |
| Includes | Discharge Mounting Flange |
| Inlet Dia. | 3-1/8 in |
| Number of Speeds | 1 |
| Overall Height | 5-3/4 in |
| Overall Width | 7-1/2 in |
| Phase | 1 |
| Blower Item | OEM Specialty Blower |
| Blower Outlet Shape | Rectangular |
| With Flange | Yes |
| Blower Wheel Diameter | 3-15/16 in |
| Blower Motor Type | DC |
| Blower Voltage | 12V DC |
| Blower Thermal Protection | No Thermal Protection |
| Blower Conduit Box | Yes |
| CFM @ 0.300-In. SP | 124 |
| Dimension C | 7-1/2 in |
| Dimension K | 3-1/2 in |
| Mounting Position | All Position |
| Dimension J | 4-7/16 in |
| Housing Finish | Enamel |
| RPM | 3,300 |
| CFM @ 0.400-In. SP | 120 |
| CFM @ 0.000-In. SP | 149 |
| Bearing Type | Ball |
| CFM @ 0.500-In. SP | 110 |
| Dimension M | 2-7/8 in |
| Agency Compliance | UL Recognized US and Canada (E47479) |
| Dimension B | 6-3/8 in |
| Outlet Height | 2-3/16 in |
| Dimension A | 5-3/8 in |
| Outlet Width | 3-1/4 in |
| Housing Color | Gray |
| Dimension E | 5-3/4 in |
| Item | OEM Blower |
| Max. Inlet Temp. | 104 deg F |
| Dimension L | 4 in |
| Lead Length | 13 in |
| Dimension D | 3-5/16 in |
| Blower Wheel Width | 2-1/2 in |
| Dimension F | 3-1/8 in |
| Motor Insulation | Class B |
| Motor Enclosure | Open |
| CFM @ 0.200-In. SP | 126 |
| Overall Depth | 5-3/8 in |
| Max. Ambient Temp. | 104 deg F |
| Wheel Type | Forward-Curved |
| Motor Speed | 3,300 rpm |
| Includes Drive Package | Not Applicable |
| Current | 5.5 A |
| Airflow @ 13.00 in SP | Not Applicable |
| Brake Horsepower | 1/25 hp |
| Features | Noise and Vibration are Held to a Minimum to Maintain cfm at Higher Static Pressures, The Motor has Cast Aluminum End Shields for Greater Heat Dissipation and Protection, Resulting in Less Downtime and Longer Service Life, This Dynamically Balanced Blower Provides Smooth and Quiet Operation |
| Number of Inlets | 1 |
| Market | Commercial, Industrial, Residential |
| Airflow @ 0.250 in SP | 132 cfm |
| Airflow @ 5.000 in SP | Not Applicable |
| Housing Material Grade | SPCC |
| Rotation | CW |
| Speed Controllable | No |
| Wheel Diameter | 3-7/8 in |
| For High-Static Pressure Applications | No |
| Includes Motor | Yes |
| Airflow @ 3.000 in SP | Not Applicable |
| Mounting Orientation | Multiposition |
| Maximum Inlet Air Temperature | 104 deg F |
| Electrical Connection | Wire Leads |
| For Air Type | Clean Air |
| Airflow @ 8.000 in SP | Not Applicable |
| Corrosion Resistant | No |
| Airflow @ 4.000 in SP | Not Applicable |
| Airflow @ 0.000 in SP | 149 cfm |
| High-Efficiency Motor | No |
| Airflow @ 2.000 in SP | Not Applicable |
| Frequency | Not Applicable |
| Spark Resistant Construction Type | Not Rated |
| Motor Frame Designation | 12 VDC motor |
| Wheel Material Finish | Galvanized |
| Inlet Diameter | 3-1/8 in |
| Shaft Diameter | 8 mm |
| Airflow @ 7.000 in SP | Not Applicable |
| Mount Type | All Position |
| Minimum Ambient Temperature | 14 deg F |
| OEM Replacement | Yes |
| Motor IP Rating | IP20 |
| Airflow @ 2.500 in SP | Not Applicable |
| Motor Horsepower | 1/25 hp |
| Airflow @ 0.750 in SP | Not Applicable |
| For Location | Indoor |
| Airflow @ 1.250 in SP | Not Applicable |
| Nameplate Voltage | 12V DC |
| Airflow @ 1.000 in SP | Not Applicable |
| Airflow @ 6.000 in SP | Not Applicable |
| Airflow @ 9.000 in SP | Not Applicable |
| Chemical Resistant | No |
| AMCA Fan Class | Not Rated |
| Maximum Static Pressure | 0.75 in wc |
| Airflow @ 12.00 in SP | Not Applicable |
| Housing Depth | 5-3/8 in |
| Airflow @ 0.125 in SP | Not Applicable |
| Discharge Position | Bottom Horizontal, Down Blast, Top Horizontal, Up Blast |
| Airflow @ 0.500 in SP | 110 cfm |
| Airflow @ 11.00 in SP | Not Applicable |
| Maximum Ambient Temperature | 104 deg F |
| Maximum Fan Speed | 3,300 rpm |
| Flange Size | 4-7/16 in W x 3-1/2 in H |
| Manufacturer Warranty Length | 1 yr Limited |
| Airflow @ 0.375 in SP | Not Applicable |
| Minimum Fan Speed | 0 RPM |
| Airflow @ 0.400 in SP | 120 cfm |
| Application | Air Conditioners, Air Cooling, Cooling, Drying, Component Cooling, General Heating, Machine Cooling, Space Ventilation, Ventilating |
| Includes Mounting Hardware | No |
| Housing Material Gauge | 0.8 mm |
| Motor Insulation Class | B |
| Housing Material Finish | Enamel |
| Housing Height | 5-3/4 in |
| Hazardous Location Application | No |
| Sound Level | Not Rated |
| Outlet Diameter | Not Applicable |
| Motor Duty Class | Continuous |
| Assembly | Assembled |
| Airflow @ 3.500 in SP | Not Applicable |
| Thermal Overload Protection | No |
| Airflow @ 4.500 in SP | Not Applicable |
| Flange Type | Flanged |
| Airflow @ 1.500 in SP | Not Applicable |
| Resistance Properties | Corrosion Resistant |
| Replacement For | Not Applicable |
| Motor Location | Out of Airstream |
| Airflow @ 10.00 in SP | Not Applicable |
| Hazardous Location Specification | Not Applicable |
| For Ventilation Type | Exhaust, Make-Up, Return, Supply |
| Wheel Bore Diameter | 8 mm |
| Wheel Width | 2-1/2 in |
| Standards | CE Compliant, RoHS Compliant |
| Airflow @ 0.100 in SP | 140 cfm |
| Housing Width | 8-3/4 in |
| Outlet Shape | Rectangular |
| Compatible Speed Control | No |
| Wheel Material | Steel |
| Mounting | All Position |
| Voltage | 12VDC |
| Motor Type | Permanent Magnet DC |
| Country of Origin (subject to change) | Taiwan, Province of China |
| Package Quantity | 1 |
