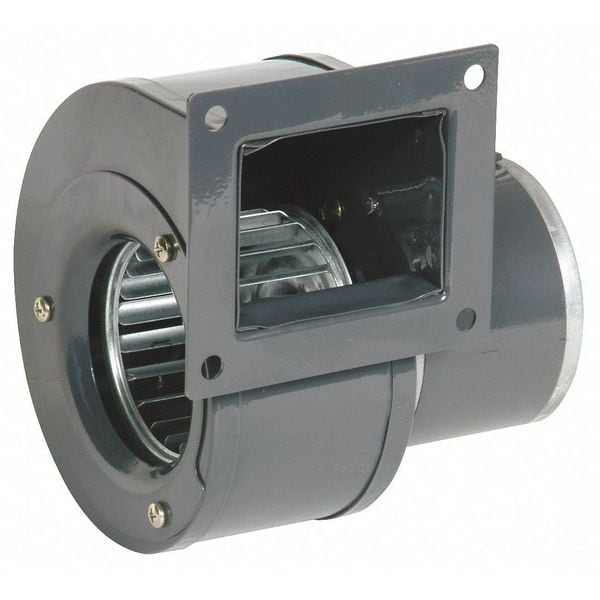

OEM Blower, Direct Drive, 3-7/8 in Wheel Dia, 151 cfm, 230V AC, 1 Phase, 1/25 hp, Open Motor
| CFM @ 0.100-In. SP | 140 |
|---|---|
| Drive Type | Direct Drive |
| Full Load Amps | 0.35 |
| Housing Material | Steel |
| Includes | Discharge Mounting Flange |
| Inlet Dia. | 3-1/8 in |
| Number of Speeds | 1 |
| Overall Height | 5-3/4 in |
| Overall Width | 6-1/4 in |
| Phase | 1 |
| Blower Item | OEM Specialty Blower |
| Blower Outlet Shape | Rectangular |
| With Flange | Yes |
| Blower Wheel Diameter | 3-15/16 in |
| Blower Motor Type | Permanent Split Capacitor |
| Blower Voltage | 230V AC |
| Blower Thermal Protection | Auto |
| Blower Conduit Box | Yes |
| Dimension B | 6-3/8 in |
| CFM @ 0.000-In. SP | 151 |
| Lead Length | 13 in |
| Dimension J | 4-5/8 in |
| Outlet Width | 3-1/4 in |
| Housing Finish | Enamel |
| Outlet Height | 2-3/16 in |
| Dimension M | 2-7/8 in |
| Dimension F | 3-5/16 in |
| Dimension D | 3-5/16 in |
| Wheel Type | Forward-Curved |
| CFM @ 0.300-In. SP | 124 |
| Dimension C | 6-5/16 in |
| RPM | 3,210 |
| CFM @ 0.500-In. SP | 110 |
| Motor Insulation | Class B |
| Dimension L | 4 in |
| Dimension K | 3-1/2 in |
| CFM @ 0.400-In. SP | 120 |
| Dimension A | 5-3/8 in |
| Housing Color | Gray |
| Bearing Type | Ball |
| Dimension E | 5-3/4 in |
| Max. Ambient Temp. | 104 deg F |
| CFM @ 0.200-In. SP | 126 |
| Mounting Position | All Position |
| Max. Inlet Temp. | 104 deg F |
| Motor Enclosure | Open |
| Hz | 50/60 |
| Overall Depth | 5-3/8 in |
| Agency Compliance | CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower |
| Item | OEM Blower |
| Blower Wheel Width | 1-7/8 in |
| Compatible Speed Control | No |
| Maximum Ambient Temperature | 104 deg F |
| Housing Width | 6-1/4 in |
| For High-Static Pressure Applications | No |
| For Air Type | Clean Air |
| Airflow @ 10.00 in SP | Not Applicable |
| Hazardous Location Application | No |
| Airflow @ 0.375 in SP | Not Applicable |
| Maximum Inlet Air Temperature | 104 deg F |
| Airflow @ 12.00 in SP | Not Applicable |
| Motor Type | Permanent Split Capacitor |
| Airflow @ 2.000 in SP | Not Applicable |
| Maximum Static Pressure | 0.75 in wc |
| For Ventilation Type | Exhaust, Make-Up, Return, Supply |
| Maximum Fan Speed | 3,210 rpm |
| Sound Level | Not Rated |
| Shaft Diameter | 8 mm |
| Wheel Width | 1-7/8 in |
| Flange Size | 4-5/8 in W x 3-1/2 in H |
| Airflow @ 0.250 in SP | 134.4 cfm |
| Airflow @ 5.000 in SP | Not Applicable |
| Motor Location | Out of Airstream |
| Corrosion Resistant | No |
| Speed Controllable | No |
| Airflow @ 1.000 in SP | Not Applicable |
| Motor Duty Class | Continuous |
| Airflow @ 8.000 in SP | Not Applicable |
| Housing Material Finish | Enamel |
| Rotation | CW |
| Wheel Bore Diameter | 8 mm |
| High-Efficiency Motor | No |
| Wheel Material Finish | Galvanized |
| Airflow @ 3.000 in SP | Not Applicable |
| Number of Inlets | 1 |
| Includes Motor | Yes |
| Airflow @ 6.000 in SP | Not Applicable |
| Motor IP Rating | IP20 |
| Brake Horsepower | 1/25 hp |
| Housing Depth | 5-3/8 in |
| Mount Type | All Position |
| Airflow @ 11.00 in SP | Not Applicable |
| Wheel Diameter | 3-7/8 in |
| Housing Material Gauge | 0.8 mm |
| Airflow @ 4.500 in SP | Not Applicable |
| Motor Frame Designation | 3.3" PSC motor |
| Mounting Orientation | Multiposition |
| Motor Speed | 3,200 rpm |
| Current | 0.35 A |
| Hazardous Location Specification | Not Applicable |
| Manufacturer Warranty Length | 1 yr Limited |
| Minimum Fan Speed | 0 RPM |
| Airflow @ 0.750 in SP | Not Applicable |
| Airflow @ 0.125 in SP | Not Applicable |
| Airflow @ 3.500 in SP | Not Applicable |
| Airflow @ 13.00 in SP | Not Applicable |
| Motor Insulation Class | B |
| Airflow @ 0.000 in SP | 151 cfm |
| Airflow @ 0.400 in SP | 120 cfm |
| Housing Material Grade | SPCC |
| Spark Resistant Construction Type | Not Rated |
| Features | Noise and Vibration are Held to a Minimum to Maintain cfm at Higher Static Pressures, the Motor has Cast Aluminum End Shields for Greater Heat Dissipation and Protection, Resulting in Less Downtime and Longer Service Life, This Dynamically Balanced Blower Provides Smooth and Quiet Operation |
| Minimum Ambient Temperature | 14 deg F |
| Nameplate Voltage | 230V AC |
| Airflow @ 0.100 in SP | 140 cfm |
| Includes Mounting Hardware | No |
| Airflow @ 7.000 in SP | Not Applicable |
| Airflow @ 1.500 in SP | Not Applicable |
| Application | Air Conditioners, Air Cooling, Cooling, Drying, Component Cooling, General Heating, Machine Cooling, Space Ventilation, Ventilating |
| Flange Type | Flanged |
| Outlet Diameter | Not Applicable |
| Thermal Overload Protection | Yes |
| Resistance Properties | Corrosion Resistant |
| Outlet Shape | Rectangular |
| Market | Commercial, Industrial, Residential |
| Airflow @ 4.000 in SP | Not Applicable |
| Discharge Position | Bottom Horizontal, Down Blast, Top Horizontal, Up Blast |
| Inlet Diameter | 3-1/8 in |
| AMCA Fan Class | Not Rated |
| Airflow @ 9.000 in SP | Not Applicable |
| Standards | CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower |
| Chemical Resistant | No |
| Assembly | Assembled |
| Airflow @ 1.250 in SP | Not Applicable |
| OEM Replacement | Yes |
| Motor Horsepower | 1/25 hp |
| Includes Drive Package | Not Applicable |
| Frequency | 50/60 Hz |
| Electrical Connection | Wire Leads |
| For Location | Indoor |
| Airflow @ 2.500 in SP | Not Applicable |
| Replacement For | Not Applicable |
| Airflow @ 0.500 in SP | 110 cfm |
| Housing Height | 5-3/4 in |
| Wheel Material | Steel |
| Mounting | All Position |
| Voltage | 230 |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
