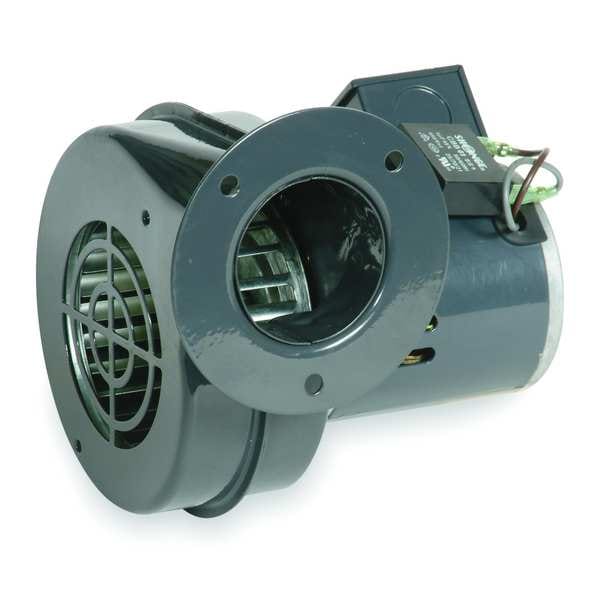

OEM Blower, Direct Drive, 3-7/8 in Wheel Dia, 72 cfm, 230V AC, 1 Phase, 1/70 hp, Open Motor
| CFM @ 0.100-In. SP | 71 |
|---|---|
| Drive Type | Direct Drive |
| Full Load Amps | 0.18 |
| Housing Material | Steel |
| Includes | Discharge Mounting Flange |
| Inlet Dia. | 3-1/8 in |
| Number of Speeds | 1 |
| Overall Height | 5-3/4 in |
| Overall Width | 6-1/4 in |
| Phase | 1 |
| Blower Item | OEM Specialty Blower |
| Blower Outlet Shape | Round |
| With Flange | Yes |
| Blower Wheel Diameter | 3-15/16 in |
| Blower Motor Type | Permanent Split Capacitor |
| Blower Voltage | 230V AC |
| Blower Thermal Protection | Auto |
| Blower Conduit Box | Yes |
| Dimension J | 4-1/16 in |
| Dimension A | 6-7/16 in |
| Housing Finish | Enamel |
| Housing Color | Gray |
| Hz | 50/60 |
| CFM @ 0.300-In. SP | 66 |
| Mounting Position | All Position |
| Dimension M | 2-13/16 in |
| Max. Inlet Temp. | 104 deg F |
| Motor Enclosure | Open |
| Dimension C | 6-1/4 in |
| Dimension L | 2-3/8 in |
| Motor Insulation | Class B |
| Dimension F | 2-1/2 in |
| Overall Depth | 6-7/16 in |
| CFM @ 0.500-In. SP | 56 |
| CFM @ 0.000-In. SP | 72 |
| Agency Compliance | CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower |
| Wheel Type | Forward-Curved |
| Bearing Type | Ball |
| Dimension B | 6-1/2 in |
| Item | OEM Blower |
| Dimension D | 2-1/4 in |
| Max. Ambient Temp. | 104 deg F |
| CFM @ 0.400-In. SP | 61 |
| CFM @ 0.200-In. SP | 68 |
| RPM | 3,100 |
| Lead Length | 13 in |
| Outlet Dia. | 2-1/8 in |
| Dimension E | 5-3/4 in |
| Blower Wheel Width | 1-7/8 in |
| Outlet Height | Not Applicable |
| Outlet Width | Not Applicable |
| Includes Mounting Hardware | No |
| Spark Resistant Construction Type | Not Rated |
| Discharge Position | Bottom Horizontal, Down Blast, Top Horizontal, Up Blast |
| Compatible Speed Control | No |
| For Location | Indoor |
| Electrical Connection | Wire Leads |
| Maximum Inlet Air Temperature | 104 deg F |
| Nameplate Voltage | 230V AC |
| Shaft Diameter | 8 mm |
| Motor Type | Permanent Split Capacitor |
| Airflow @ 2.000 in SP | Not Applicable |
| For Air Type | Clean Air |
| Housing Depth | 6-7/16 in |
| Airflow @ 6.000 in SP | Not Applicable |
| Minimum Ambient Temperature | 14 deg F |
| Airflow @ 1.000 in SP | Not Applicable |
| Chemical Resistant | No |
| Inlet Diameter | 3-1/8 in |
| Mount Type | All Position |
| Flange Type | Flanged |
| Maximum Ambient Temperature | 104 deg F |
| Housing Width | 6-1/4 in |
| Housing Material Finish | Enamel |
| Mounting Orientation | Multiposition |
| Market | Commercial, Industrial, Residential |
| High-Efficiency Motor | No |
| Motor Location | Out of Airstream |
| Airflow @ 0.100 in SP | 71 cfm |
| Frequency | 50/60 Hz |
| Wheel Material Finish | Galvanized |
| Hazardous Location Application | No |
| Maximum Fan Speed | 3,100 rpm |
| Number of Inlets | 1 |
| AMCA Fan Class | Not Rated |
| Airflow @ 5.000 in SP | Not Applicable |
| Flange Size | 4 1/16 in Dia. |
| Outlet Diameter | 2-1/8 in |
| Replacement For | Not Applicable |
| Application | Air Conditioners, Air Cooling, Cooling, Drying, Component Cooling, General Heating, Machine Cooling, Space Ventilation, Ventilating |
| Airflow @ 13.00 in SP | Not Applicable |
| Minimum Fan Speed | 0 RPM |
| Airflow @ 12.00 in SP | Not Applicable |
| Corrosion Resistant | No |
| Airflow @ 9.000 in SP | Not Applicable |
| Manufacturer Warranty Length | 1 yr Limited |
| Airflow @ 4.500 in SP | Not Applicable |
| Sound Level | Not Rated |
| Airflow @ 8.000 in SP | Not Applicable |
| Airflow @ 0.125 in SP | Not Applicable |
| Airflow @ 3.000 in SP | Not Applicable |
| Airflow @ 11.00 in SP | Not Applicable |
| Airflow @ 3.500 in SP | Not Applicable |
| Airflow @ 0.400 in SP | 61 cfm |
| Airflow @ 0.750 in SP | Not Applicable |
| Motor Horsepower | 1/70 hp |
| Maximum Static Pressure | 1.125 in wc |
| Motor IP Rating | IP20 |
| Brake Horsepower | 1/70 hp |
| Motor Speed | 3,080 rpm |
| Hazardous Location Specification | Not Applicable |
| Housing Material Grade | SPCC |
| Current | 0.18 A |
| Housing Height | 5-3/4 in |
| For High-Static Pressure Applications | No |
| Airflow @ 4.000 in SP | Not Applicable |
| Wheel Width | 1-7/8 in |
| Speed Controllable | No |
| Thermal Overload Protection | Yes |
| Features | Noise and Vibration are Held to a Minimum to Maintain cfm at Higher Static Pressures, the Motor has Cast Aluminum End Shields for Greater Heat Dissipation and Protection, Resulting in Less Downtime and Longer Service Life, This Dynamically Balanced Blower Provides Smooth and Quiet Operation |
| Airflow @ 7.000 in SP | Not Applicable |
| Airflow @ 0.250 in SP | 68 cfm |
| Airflow @ 0.375 in SP | Not Applicable |
| Wheel Bore Diameter | 8 mm |
| Wheel Diameter | 3-7/8 in |
| Outlet Shape | Round |
| Includes Drive Package | Not Applicable |
| Includes Motor | Yes |
| Airflow @ 10.00 in SP | Not Applicable |
| Rotation | CW |
| Motor Frame Designation | 3.3" PSC motor |
| OEM Replacement | Yes |
| Motor Duty Class | Continuous |
| Assembly | Assembled |
| Airflow @ 0.000 in SP | 72 cfm |
| Airflow @ 1.500 in SP | Not Applicable |
| For Ventilation Type | Exhaust, Make-Up, Return, Supply |
| Motor Insulation Class | B |
| Housing Material Gauge | 0.8 mm |
| Airflow @ 2.500 in SP | Not Applicable |
| Standards | CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower |
| Resistance Properties | Corrosion Resistant |
| Airflow @ 1.250 in SP | Not Applicable |
| Airflow @ 0.500 in SP | 56 cfm |
| Wheel Material | Steel |
| Voltage | 230 |
| Mounting | All Position |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
