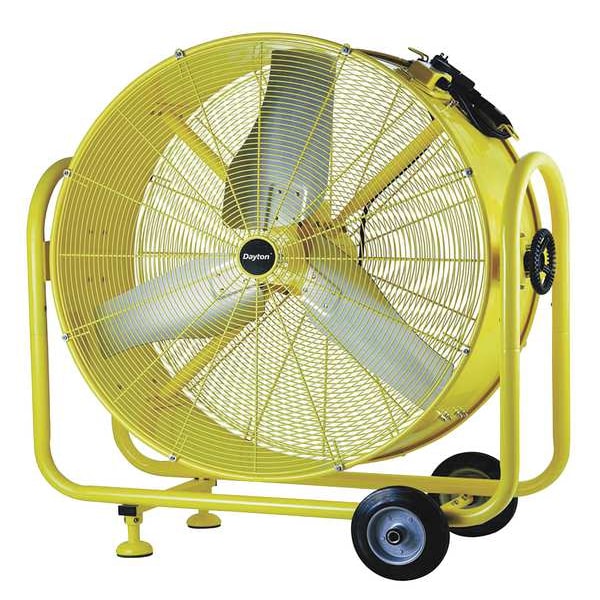

Outdoor Air Circulator, Floor Mount, 24 in Blade Dia, 120V, 3,600/5,800 cfm, Non-Oscillating
| Blade Diameter | 24 in |
|---|---|
| Oscillation | Non-Oscillating |
| Number of Speeds | 2 |
| Voltage | 120V |
| Phase | 1 |
| Motor HP | 0.3333 HP |
| Air Flow | 3,600/5,800 cfm |
| Drive Type | Direct Drive |
| Blade Material | Aluminum |
| Item | Air Circulator |
| Environmental Applications | Industrial |
| Application | Air Circulation |
| Height | 32 in |
| Motor Type | Permanent Split Capacitor |
| Motor Insulation | Class B |
| Watts | 395/275 W |
| Number of Conductors | 3 |
| Shaft Dia. | 5/8 in |
| Fan Style | Outdoor |
| CFM Low | 3,600 |
| Standards | UL/cUL Listed, OSHA compliant wire guards |
| Air Velocity @ 20 Ft. | 250/220 fpm |
| Mobile/Stationary | Mobile |
| Air Velocity @ 40 Ft. | 100/90 fpm |
| Bearing Type | Sealed Ball |
| Air Velocity @ 60 Ft. | 45/10 fpm |
| Outside Dia. | 29 in |
| Max. Ambient Temp. | 104 deg F |
| Hz | 60 |
| CFM High | 5,800 |
| Housing Material | Galvanized Steel |
| Fan Mounting Location | Floor |
| Wire Guard Finish | Polyester Powder Coated |
| Number of Blades | 3 |
| NEMA Plug Configuration | 5-15p |
| Thermal Protection | Automatic Reset |
| Fan Accessory Style | Outdoor |
| Guard Material | Galvanized Steel |
| Includes | Cord Wrap and Tilt Wheel, 8" Steel and Rubber Casters |
| Assembled | Partially Assembled |
| Motor RPM | 850/725 RPM |
| Max. Depth | 15 in |
| Motor Enclosure | Totally Enclosed Air Over |
| Width | 32 in |
| Head Tilt Adjustment | 50 Degrees Up to 10 Degrees Down |
| Height Adjustment | Fixed Height |
| Fan Housing Material | Steel |
| Assembly Required | Yes |
| Fan Cord Length | 9 ft |
| Color | Yellow |
| Wheeled Base | Mobile |
| Wheel Material | Steel/Rubber |
| Wheel Dia. | 8 in |
| Amps | 3.4/2.2 |
| Depth | 15 in |
| RPM | 850/725 |
| Material | Galvanized Steel |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
