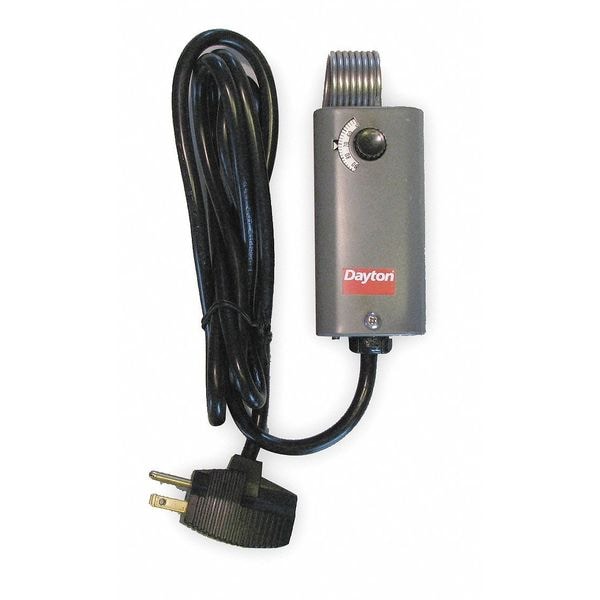

Portable Heating Thermostat, Open on Rise, 35 Degrees to 95 Degrees F, SPST, 120V AC
| Switch Action | Open on Rise |
|---|---|
| Voltage | 120V AC |
| Sensor Type | Hydraulic Air Coil |
| Differential | 3.5 Degrees F |
| Display Type | Analog |
| Thermostat Control Range | 35 to 95 deg F |
| Switch Type | SPST |
| Color | Gray |
| Width | 2-1/8 in |
| Height | 4-1/2 in |
| Control Range | 35 to 95 deg F |
| For Use With | Portable Heating Equipment |
| Includes | 6 ft Cord with Piggyback Plug, Wire Hanger |
| Thermostat Switch Type | SPST |
| Inductive Amps @ 120V | 12 A |
| Thermostat Voltage | 120V AC |
| Enclosure Type | Steel |
| Resistive Amps @ 120V | 15 A |
| Item | Portable Heating Thermostat |
| Depth | 2-1/8 in |
| Standards | CUL, UL |
| Inductive Amps @ 240V | 8 A |
| Thermostat Type | Portable Heating |
| Locked Rotor Amps @ 120V | 72 A |
| Application | Heat Only |
| Mounting | Vertical or Horizontal |
| Inductive Amps @ 208V | 9.2 A |
| Contact Rating Resistive @ 120V | 15 A |
| Contact Rating Resistive @ 240V | 22 A |
| Key Pad Lockout | No |
| Type | Piggyback Plug |
| Features | Extended Cord With A Piggyback Plug |
| Temporary Temperature Hold | No |
| Temperature Limiting | No |
| Dual Transformer Compatible | No |
| Battery Backup | No |
| Control Type | Mechanical Selector Dial |
| Phase | 1 |
| Temporary Program Override | No |
| Compatible System Type | Portable Heating Equipment |
| Smart Connectivity | No Connectivity |
| Housing Material | Steel |
| Overall Height | 5-3/4 in |
| Housing Type | Standard Housing |
| Enclosure NEMA Rating | 1 |
| Enclosure Rating/Material | NEMA 1, Steel |
| Overall Width | 2-1/4 in |
| Minimum Control Temperature | 35 deg F |
| Temperature Control Range | 35 to 95 deg F |
| Programming Capability | Not Programmable |
| Electrical Connection Type | Corded |
| Temperature Scale | Fahrenheit |
| Enclosure Color | Gray |
| Temperature Differential | 3 Degrees F |
| Contact Rating | 120 V AC |
| Contact Type | Snap Action |
| Maximum Control Temperature | 95 deg F |
| Temperature Sensitivity | +/-3 deg F |
| Temperature settings per day | Manual Adjust |
| Overall Depth | 2-1/4 in |
| Switch Type/Action | Open, SPST on Rise |
| Includes Batteries | No |
| Housing Color | Gray |
| Enclosure Finish | Powder Coated |
| Maximum Operating Temperature | 110 deg F |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
