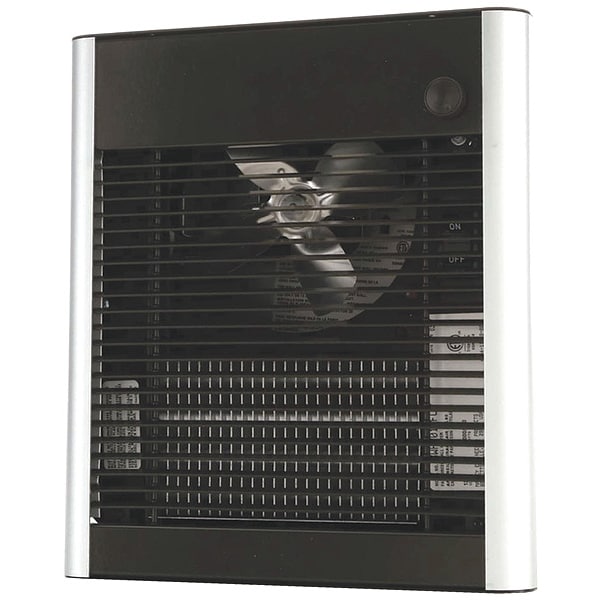

Recessed Electric Wall-Mount Heater, Recessed or Surface, 1125/1500 W, 240/277V AC, White
| Electric Heater Item | Electric Wall Heater |
|---|---|
| Electric Heater Type | Architectural |
| Watts | 1125/1500 |
| BtuH | 3840/5118 |
| Heater Voltage | 240/277 V AC |
| Electric Heater Phase | 1 |
| Wall Opening Width | 9-3/16" |
| Color | White |
| Amps AC | 4.7/5.5 |
| Wall Opening Depth | 3-3/4" |
| Housing Height | 11 in |
| Finish | Baked Enamel |
| Grille Width | 10-3/4 in |
| Item | Recessed Electric Wall-Mount Heater |
| Hz | 60 |
| Features | Thermostat 40 to 85 Range, Overheat Switch, Fan Delay Switch |
| Grille Depth | 1-1/2 in |
| Mounting Type | Recessed or Surface |
| Housing Width | 9-1/4 in |
| Grille Height | 12-1/8 in |
| Air Temp. Rise | 59 deg F |
| Housing Depth | 3-3/4 in |
| Grille Material | Steel |
| Manufacturers Warranty Length | 1 yr |
| Wall Opening Height | 11 in |
| Standards | cULus Listed |
| Voltage | 240/277V AC |
| Air Flow | 65 cfm |
| Phase | 1 |
| Includes | Built-in Thermal Cutout, Fan Delay Switch |
| Voltage, Phase | 240/277V AC, 1-phase |
| Rough-In Width | 9-3/16 in |
| Building Management System Compatible | No |
| Housing Material | Steel |
| Setback Control | No |
| Thermostat Contact Type | Single Pole |
| Grille Finish | Enamel |
| Remote Control Functions | No Remote Control Included |
| Disconnect Switch | Yes |
| Wattage Output | 1125 W/1500 W |
| Amperage | 4.7 A/5.5 A |
| Automatic Fan Delay (On/Off) | Yes |
| Heater Mounting Position | Horizontal Burn |
| Minimum Mounting Height from Floor | 4 in |
| Smart Connectivity | No Connectivity |
| Control Type | Mechanical Selector Dial |
| Rough-In Depth | 3-3/4 in |
| Occupancy Sensor | No |
| Wattage Field Convertible | Yes |
| Hold Function | No |
| Tamper Resistant | Yes |
| Rough-In Dimensions - H x W x D | 11 in x 9-3/16 in x 3-3/4 in |
| Minimum Mounting Distance from Ceiling | 12 in |
| Programming Capability | Not Programmable |
| Filter Included | No |
| Fan Only Operation | No |
| Grille Color | White |
| Heating Capacity | 3,840/5,118 BtuH |
| Thermal Overheat Protection | Automatic Reset |
| Frequency | 60 Hz |
| Thermostat Included | Unit-Mounted |
| Heating Method | Fan Forced |
| Rough-In Height | 11 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
