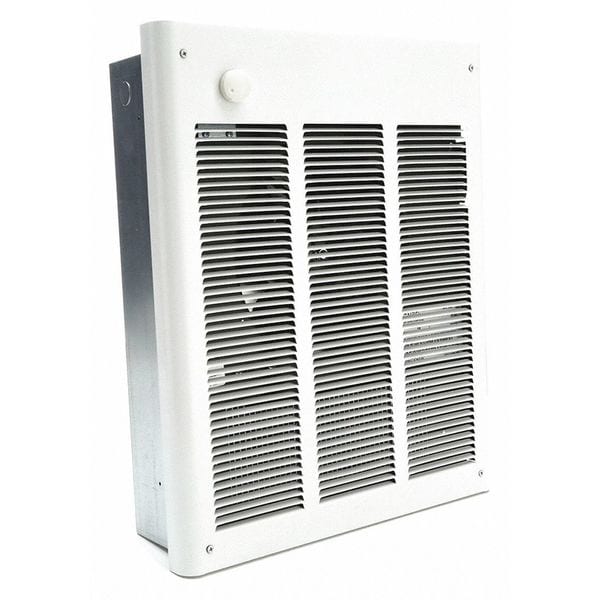

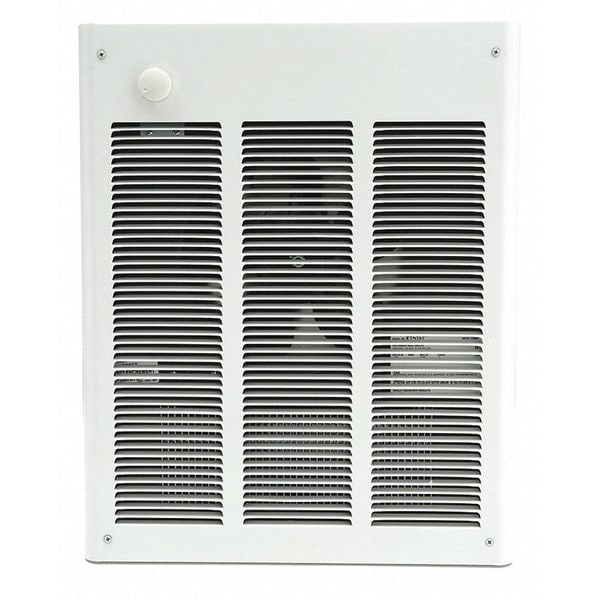

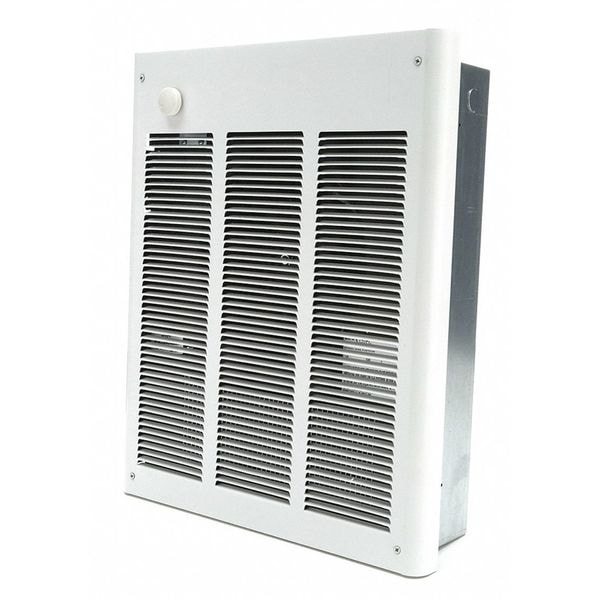

Recessed Electric Wall-Mount Heater, Recessed or Surface, 3600/4800 W, 240/277V AC, White
| Electric Heater Item | Electric Wall Heater |
|---|---|
| Electric Heater Type | Commercial/Industrial |
| Watts | 3600/4800 |
| BtuH | 12,287/16,382 |
| Heater Voltage | 240/277 V AC |
| Electric Heater Phase | 1 |
| Wall Opening Width | 14-5/8" |
| Color | White |
| Amps AC | 15.0/17.2 |
| Wall Opening Depth | 3-7/8" |
| Mounting Type | Recessed or Surface |
| Features | Double Pole Single Throw Disconnect Switch, Impedance Protected, Permanently Lubricated Totally Enclosed Motor, Thermostat with 40 to 90 Range, Thermal Overheat Protector |
| Grille Depth | 1-1/2 in |
| Housing Depth | 3-3/4 in |
| Standards | UL Listed |
| Item | Recessed Electric Wall-Mount Heater |
| Grille Material | Steel |
| Grille Height | 19-1/4 in |
| Housing Height | 18-1/4 in |
| Hz | 60 |
| Housing Width | 14-5/16 in |
| Wall Opening Height | 18-1/4 in |
| Manufacturers Warranty Length | 5 yr On Element, 1 yr All other parts |
| Finish | Powder Paint |
| Grille Width | 15-3/4 in |
| Air Temp. Rise | 132 deg F |
| Voltage | 240/277V AC |
| Air Flow | 100 cfm |
| Phase | 1 |
| Includes | Built-in Thermal Cutout, Fan Delay Switch |
| Automatic Fan Delay (On/Off) | Yes |
| Tamper Resistant | No |
| Minimum Mounting Height from Floor | 8 in |
| Disconnect Switch | Yes |
| Hold Function | No |
| Control Type | Mechanical Selector Dial |
| Rough-In Dimensions - H x W x D | 18-1/4 in x 14-5/8 in x 3-7/8 in |
| Rough-In Height | 18-1/4 in |
| Occupancy Sensor | No |
| Programming Capability | Not Programmable |
| Fan Only Operation | Yes |
| Grille Finish | Powder Coated |
| Setback Control | No |
| Building Management System Compatible | No |
| Frequency | 60 Hz |
| Wattage Output | 3600 W/4800 W |
| Wattage Field Convertible | Yes |
| Heating Capacity | 12,287/16,382 BtuH |
| Thermostat Contact Type | Double Pole |
| Grille Color | White |
| Heating Method | Fan Forced |
| Remote Control Functions | No Remote Control Included |
| Thermostat Included | Unit-Mounted |
| Minimum Mounting Distance from Ceiling | 36 in |
| Amperage | 15 A/17.2 A |
| Smart Connectivity | No Connectivity |
| Rough-In Width | 14-5/8 in |
| Voltage, Phase | 240/277V AC, 1-phase |
| Thermal Overheat Protection | Manual Reset |
| Housing Material | Steel |
| Filter Included | No |
| Heater Mounting Position | Horizontal Burn |
| Rough-In Depth | 3-7/8 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
