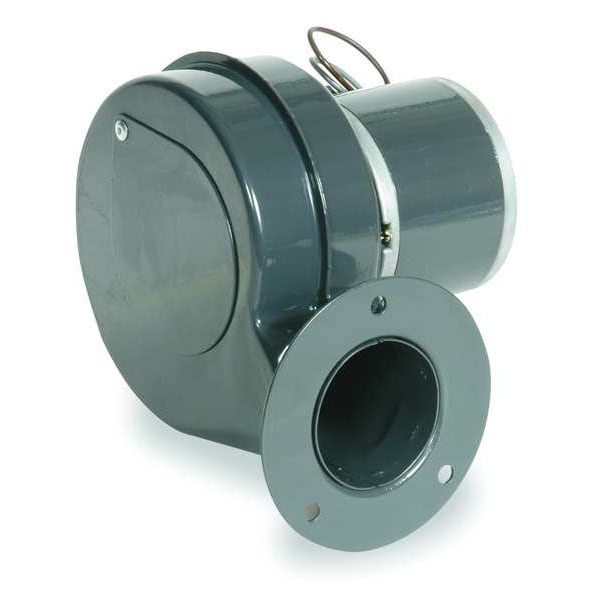

Round OEM Blower, 3037 RPM, 1 Phase, Direct Drive, Steel 1 Speed
| CFM @ 0.100-In. SP | 47 |
|---|---|
| Drive Type | Direct Drive |
| Full Load Amps | 0.11 |
| Housing Material | Steel |
| Includes | Discharge Mounting Flange, Inlet Cover |
| Inlet Dia. | 2-3/8 in |
| Number of Speeds | 1 |
| Overall Height | 5-3/4 in |
| Overall Width | 5 in |
| Phase | 1 |
| Blower Item | OEM Specialty Blower |
| Blower Outlet Shape | Round |
| With Flange | Yes |
| Blower Wheel Diameter | 3 in |
| Blower Motor Type | Permanent Split Capacitor |
| Blower Voltage | 230V AC |
| Blower Thermal Protection | Auto |
| Blower Conduit Box | Yes |
| Dimension A | 6-7/16 in |
| Dimension C | 5-1/16 in |
| Overall Depth | 6-7/16 in |
| Housing Finish | Enamel |
| Dimension E | 5-13/16 in |
| Lead Length | 13 in |
| Housing Color | Gray |
| CFM @ 0.400-In. SP | 32 |
| Motor Insulation | Class B |
| CFM @ 0.000-In. SP | 49 |
| Item | OEM Blower |
| Dimension D | 2-1/4 in |
| RPM | 3,037 |
| Max. Ambient Temp. | 104 deg F |
| Dimension B | 6-9/16 in |
| Wheel Type | Forward-Curved |
| Replaces | 2C914 |
| Mounting Position | All Position |
| Hz | 50/60 |
| Max. Inlet Temp. | 104 deg F |
| Dimension L | 2-3/8 in |
| Dimension J | 4-1/16 in |
| Dimension M | 2-13/16 in |
| CFM @ 0.200-In. SP | 41 |
| Dimension F | 2-1/2 in |
| Outlet Dia. | 2-1/8 in |
| Agency Compliance | CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower |
| CFM @ 0.300-In. SP | 37 |
| CFM @ 0.500-In. SP | 17 |
| Motor Enclosure | Open |
| Bearing Type | Ball |
| Blower Wheel Width | 1-7/8 in |
| Outlet Width | Not Applicable |
| Outlet Height | Not Applicable |
| Spark Resistant Construction Type | Not Rated |
| Airflow @ 0.125 in SP | Not Applicable |
| Airflow @ 9.000 in SP | Not Applicable |
| Wheel Width | 1-7/8 in |
| Wheel Bore Diameter | 8 mm |
| Speed Controllable | No |
| Airflow @ 2.000 in SP | Not Applicable |
| Airflow @ 0.750 in SP | Not Applicable |
| Sound Level | Not Rated |
| Airflow @ 0.100 in SP | 47 cfm |
| Airflow @ 0.500 in SP | 17 cfm |
| Maximum Fan Speed | 3,037 rpm |
| Airflow @ 0.375 in SP | Not Applicable |
| Motor Speed | 3,080 rpm |
| Airflow @ 0.400 in SP | 32 cfm |
| Housing Width | 5 in |
| Current | 0.11 A |
| Number of Inlets | 1 |
| Discharge Position | Bottom Horizontal, Down Blast, Top Horizontal, Up Blast |
| Airflow @ 11.00 in SP | Not Applicable |
| Assembly | Assembled |
| Includes Motor | Yes |
| For Air Type | Clean Air |
| For High-Static Pressure Applications | No |
| Airflow @ 1.250 in SP | Not Applicable |
| Includes Mounting Hardware | No |
| Airflow @ 4.000 in SP | Not Applicable |
| Maximum Static Pressure | 0.625 in wc |
| Airflow @ 1.500 in SP | Not Applicable |
| Motor IP Rating | IP20 |
| High-Efficiency Motor | No |
| Airflow @ 1.000 in SP | Not Applicable |
| Airflow @ 2.500 in SP | Not Applicable |
| Nameplate Voltage | 230V AC |
| Brake Horsepower | 1/125 hp |
| Outlet Shape | Round |
| Minimum Fan Speed | 0 RPM |
| Mounting Orientation | Multiposition |
| Shaft Diameter | 8 mm |
| Airflow @ 6.000 in SP | Not Applicable |
| Motor Duty Class | Continuous |
| Includes Drive Package | Not Applicable |
| Motor Frame Designation | 3.3" PSC motor |
| Market | Commercial, Industrial, Residential |
| Housing Depth | 6-7/16 in |
| Airflow @ 7.000 in SP | Not Applicable |
| OEM Replacement | Yes |
| Airflow @ 3.000 in SP | Not Applicable |
| Airflow @ 0.000 in SP | 49 cfm |
| Flange Size | 4 1/16 in Dia. |
| Compatible Speed Control | No |
| For Ventilation Type | Exhaust, Make-Up, Return, Supply |
| Airflow @ 4.500 in SP | Not Applicable |
| Resistance Properties | Corrosion Resistant |
| Airflow @ 13.00 in SP | Not Applicable |
| Electrical Connection | Wire Leads |
| Wheel Material Finish | Galvanized |
| Motor Location | Out of Airstream |
| Mount Type | All Position |
| Housing Material Gauge | 0.8 mm |
| Application | Air Conditioners, Air Cooling, Cooling, Drying, Component Cooling, General Heating, Machine Cooling, Space Ventilation, Ventilating |
| Frequency | 50/60 Hz |
| Airflow @ 8.000 in SP | Not Applicable |
| Motor Type | Permanent Split Capacitor |
| Airflow @ 0.250 in SP | 37 cfm |
| Maximum Inlet Air Temperature | 104 deg F |
| Airflow @ 10.00 in SP | Not Applicable |
| Corrosion Resistant | No |
| Standards | CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower |
| Wheel Diameter | 3 in |
| For Location | Indoor |
| Flange Type | Flanged |
| Housing Material Finish | Enamel |
| Features | Noise and Vibration are Held to a Minimum to Maintain cfm at Higher Static Pressures, The Motor has Cast Aluminum End Shields for Greater Heat Dissipation and Protection, Resulting in Less Downtime and Longer Service Life, This Dynamically Balanced Blower Provides Smooth and Quiet Operation |
| Manufacturer Warranty Length | 1 yr Limited |
| Motor Horsepower | 1/125 hp |
| Housing Material Grade | SPCC |
| Inlet Diameter | 2-3/8 in |
| Maximum Ambient Temperature | 104 deg F |
| Hazardous Location Specification | Not Applicable |
| Thermal Overload Protection | Yes |
| Motor Insulation Class | B |
| Chemical Resistant | No |
| Housing Height | 5-3/4 in |
| AMCA Fan Class | Not Rated |
| Minimum Ambient Temperature | 14 deg F |
| Rotation | CCW |
| Airflow @ 3.500 in SP | Not Applicable |
| Airflow @ 12.00 in SP | Not Applicable |
| Outlet Diameter | 2-1/8 in |
| Airflow @ 5.000 in SP | Not Applicable |
| Hazardous Location Application | No |
| Replacement For | 2C914 |
| Wheel Material | Steel |
| Voltage | 230 |
| Mounting | All Position |
| Country of Origin (subject to change) | Taiwan, Province of China |
| Package Quantity | 1 |
