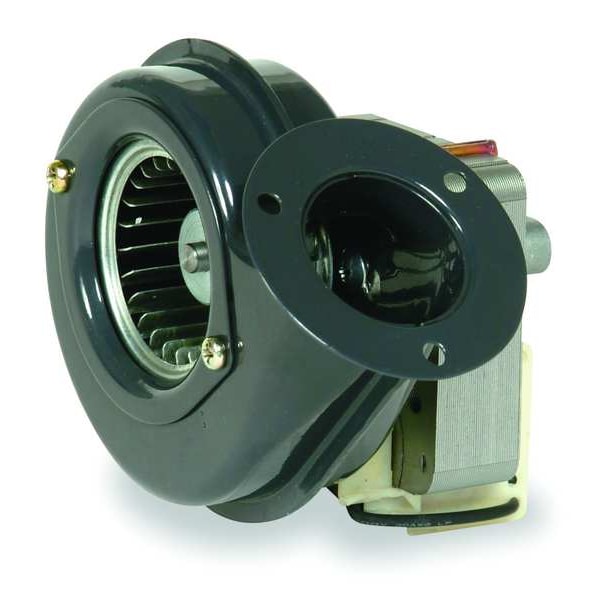

Round OEM Blower, 3394 RPM, 1 Phase, Direct Drive, Steel 1 Speed
| CFM @ 0.100-In. SP | 9.3 |
|---|---|
| Drive Type | Direct Drive |
| Full Load Amps | 0.29 |
| Housing Material | Steel |
| Includes | Discharge Mounting Flange |
| Inlet Dia. | 1-7/8 in |
| Number of Speeds | 1 |
| Overall Height | 3-3/4 in |
| Overall Width | 3-3/16 in |
| Phase | 1 |
| Blower Item | OEM Specialty Blower |
| Blower Outlet Shape | Round |
| With Flange | Yes |
| Blower Wheel Diameter | 2 in |
| Blower Motor Type | Shaded Pole |
| Blower Voltage | 115V AC |
| Blower Thermal Protection | Auto |
| Blower Conduit Box | No |
| Motor Insulation | Class B |
| CFM @ 0.000-In. SP | 13 |
| Housing Color | Gray |
| RPM | 3,394 |
| Dimension L | 1-5/8 in |
| Dimension B | 4-1/8 in |
| Housing Finish | Enamel |
| Dimension J | 2-1/4 in |
| Bearing Type | Ball |
| Lead Length | 13 in |
| Dimension E | 3-7/8 in |
| Overall Depth | 4 in |
| Dimension A | 4 in |
| Motor Enclosure | Open |
| Dimension C | 3-3/16 in |
| Dimension M | 1-7/16 in |
| Max. Ambient Temp. | 104 deg F |
| Blower Wheel Width | 1-7/8 in |
| Mounting Position | All Position |
| Wheel Type | Forward-Curved |
| Outlet Dia. | 1-1/4 in |
| Item | OEM Blower |
| Max. Inlet Temp. | 104 deg F |
| Agency Compliance | CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower |
| Dimension D | 1-3/8 in |
| Hz | 60 |
| Replaces | 4C759 |
| Outlet Height | Not Applicable |
| Outlet Width | Not Applicable |
| Motor Frame Designation | C-frame motor |
| Mount Type | All Position |
| Airflow @ 8.000 in SP | Not Applicable |
| High-Efficiency Motor | No |
| Assembly | Assembled |
| Airflow @ 13.00 in SP | Not Applicable |
| Housing Material Gauge | 0.8 mm |
| Wheel Material Finish | Galvanized |
| For Ventilation Type | Exhaust, Make-Up, Return, Supply |
| Maximum Ambient Temperature | 104 deg F |
| Flange Type | Flanged |
| Airflow @ 0.400 in SP | Not Applicable |
| Airflow @ 0.250 in SP | Not Applicable |
| Thermal Overload Protection | Yes |
| Shaft Diameter | 6 mm |
| Airflow @ 2.000 in SP | Not Applicable |
| Inlet Diameter | 1-7/8 in |
| Airflow @ 1.000 in SP | Not Applicable |
| Wheel Bore Diameter | 6 mm |
| Airflow @ 3.500 in SP | Not Applicable |
| Mounting Orientation | Multiposition |
| Market | Commercial, Industrial, Residential |
| Electrical Connection | Wire Leads |
| Airflow @ 0.000 in SP | 13 cfm |
| Airflow @ 6.000 in SP | Not Applicable |
| Includes Drive Package | Not Applicable |
| Outlet Diameter | 1-1/4 in |
| Airflow @ 0.100 in SP | 9 cfm |
| Motor Type | Shaded Pole |
| Airflow @ 11.00 in SP | Not Applicable |
| Airflow @ 12.00 in SP | Not Applicable |
| Wheel Width | 1-7/8 in |
| Airflow @ 0.375 in SP | Not Applicable |
| Maximum Fan Speed | 3,394 rpm |
| Minimum Fan Speed | 0 RPM |
| Nameplate Voltage | 115V AC |
| Rotation | CCW |
| Airflow @ 0.750 in SP | Not Applicable |
| Hazardous Location Specification | Not Applicable |
| Motor Horsepower | 1/500 hp |
| Airflow @ 5.000 in SP | Not Applicable |
| Chemical Resistant | No |
| Application | Air Conditioners, Air Cooling, Cooling, Drying, Component Cooling, General Heating, Machine Cooling, Space Ventilation, Ventilating |
| Minimum Ambient Temperature | 14 deg F |
| OEM Replacement | Yes |
| Housing Width | 3-3/16 in |
| Replacement For | 4C759 |
| Housing Depth | 4 in |
| Motor IP Rating | IP00 |
| Includes Motor | Yes |
| Outlet Shape | Round |
| Airflow @ 2.500 in SP | Not Applicable |
| Airflow @ 1.250 in SP | Not Applicable |
| Housing Material Finish | Enamel |
| For Location | Indoor |
| Number of Inlets | 1 |
| Airflow @ 0.125 in SP | Not Applicable |
| Flange Size | 2 1/4 in Dia. |
| Corrosion Resistant | No |
| Housing Height | 3-3/4 in |
| Housing Material Grade | SPCC |
| Wheel Diameter | 2 in |
| Discharge Position | Bottom Horizontal, Down Blast, Top Horizontal, Up Blast |
| Compatible Speed Control | No |
| Airflow @ 0.500 in SP | Not Applicable |
| Airflow @ 7.000 in SP | Not Applicable |
| Features | Noise and Vibration are Held to a Minimum to Maintain cfm at Higher Static Pressures, the Motor has Cast Aluminum End Shields for Greater Heat Dissipation and Protection, Resulting in Less Downtime and Longer Service Life, This Dynamically Balanced Blower Provides Smooth and Quiet Operation |
| Airflow @ 3.000 in SP | Not Applicable |
| Maximum Static Pressure | 0.125 in wc |
| Motor Location | Out of Airstream |
| Airflow @ 4.000 in SP | Not Applicable |
| Motor Duty Class | Continuous |
| Hazardous Location Application | No |
| Manufacturer Warranty Length | 1 yr Limited |
| Resistance Properties | Corrosion Resistant |
| Standards | CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower |
| Motor Insulation Class | B |
| Includes Mounting Hardware | No |
| Brake Horsepower | 1/500 hp |
| Sound Level | Not Rated |
| Motor Speed | 3,380 rpm |
| Airflow @ 4.500 in SP | Not Applicable |
| For Air Type | Clean Air |
| Current | 0.29 A |
| Frequency | 60 Hz |
| Maximum Inlet Air Temperature | 104 deg F |
| For High-Static Pressure Applications | No |
| Speed Controllable | No |
| Airflow @ 9.000 in SP | Not Applicable |
| Spark Resistant Construction Type | Not Rated |
| Airflow @ 10.00 in SP | Not Applicable |
| AMCA Fan Class | Not Rated |
| Airflow @ 1.500 in SP | Not Applicable |
| Wheel Material | Steel |
| Mounting | All Position |
| Voltage | 115 |
| Country of Origin (subject to change) | Taiwan, Province of China |
| Package Quantity | 1 |
