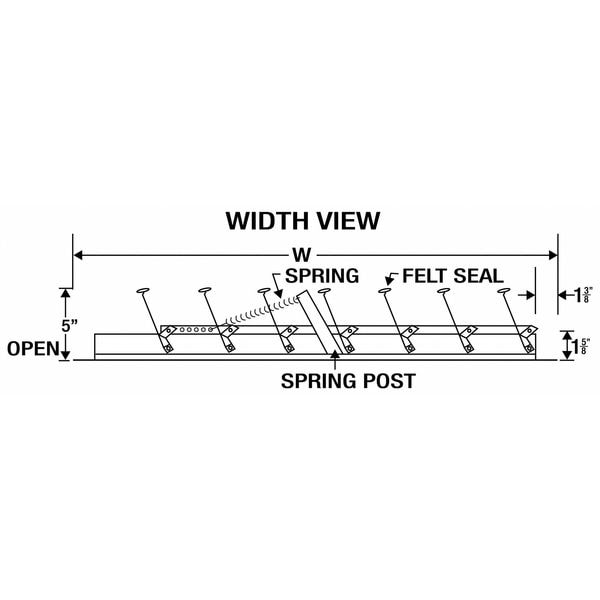

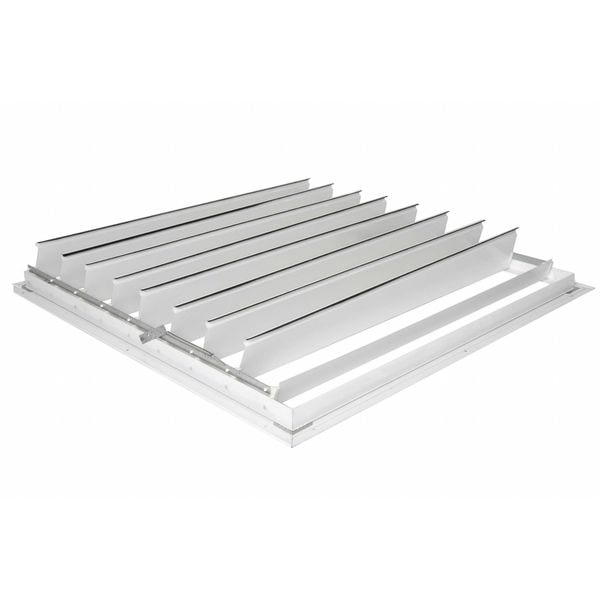

Spring Backdraft Damper, Vert/Horz Ceiling Mount, 24 in Dia Fan, 26 in H x 26 in W x 5 in D, 2000fpm
| Item | 26"H-W Aluminum Spring Backdraft Damper |
|---|---|
| Shutter Mounting Position | Horizontal |
| Shutter Mounting Location | Ceiling |
| Shutter Construction Material | Extruded Aluminum Frame and G-90 Galvanized Tie Rods |
| Shutter Free Area | 3.631 sq ft |
| Shutter Opening Required | 24 in x 24 in |
| Shutter Overall Size | 26 in x 26 in |
| Fits Fan Dia. | 24 in |
| Blade Material | Aluminum |
| Max. Velocity | 1500 FPM |
| Type | Gravity Operated, Single Panel |
| Width | 26 in |
| Shutter Overall Square | 26" x 26" |
| Length | 26 in |
| Flange Width | 1-3/8 in |
| Number of Panels | 1 |
| Frame Depth | 1-5/8 in |
| Open Depth | 5 in |
| Shutter Item | Whole House Fan Economy Ceiling Shutter |
| Mounting Hole Size | Prepunched |
| For Use With | 24 in Whole House Fans |
| Mounting Position | Vertical, Horizontal |
| Free Area | 3.6 sq ft |
| Damper Finish | Baked Enamel |
| Color | White |
| Blade Material Thickness | 26 ga |
| Rough Opening Width | 24 in |
| Rough Opening Length | 24 in |
| Opening Type | Spring |
| Tie-Rod Material | Tie Rods, Galvanized Steel Frame |
| Single Acting/Double Acting | Single Acting |
| Blade Seal Material | Felt |
| Bushing Material | Stainless Steel |
| Overall Width | 26 in |
| Counterbalanced | Yes |
| Frame Material | Aluminum |
| Frame Material Thickness | 0.1 ga |
| Switch Action | Normally Closed |
| Rough Opening Shape | Square |
| Closure Type | Spring |
| Mounting Style | Flush Mount |
| Mounting Hole Diameter | 1/4 in |
| Flange Type | Front Flange |
| Airflow Direction | Horizontal |
| Overall Height | 26 in |
| Maximum Air Velocity | 2,000 fpm |
| Fits Fan Diameter | 24 in |
| Maximum Pressure | 1 in wc |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
