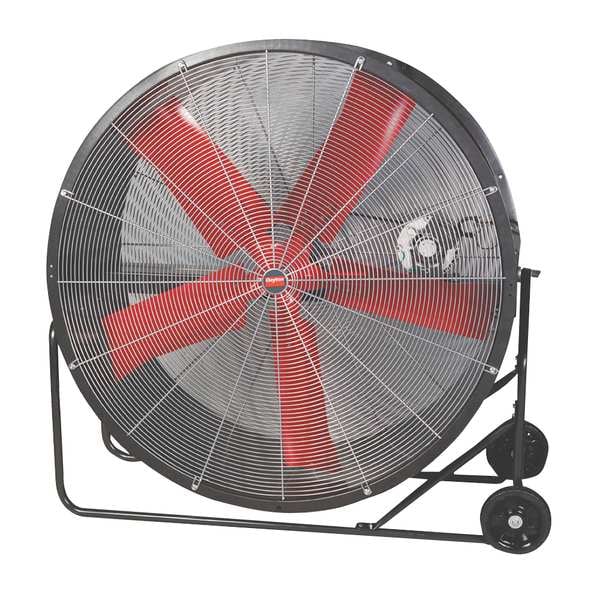

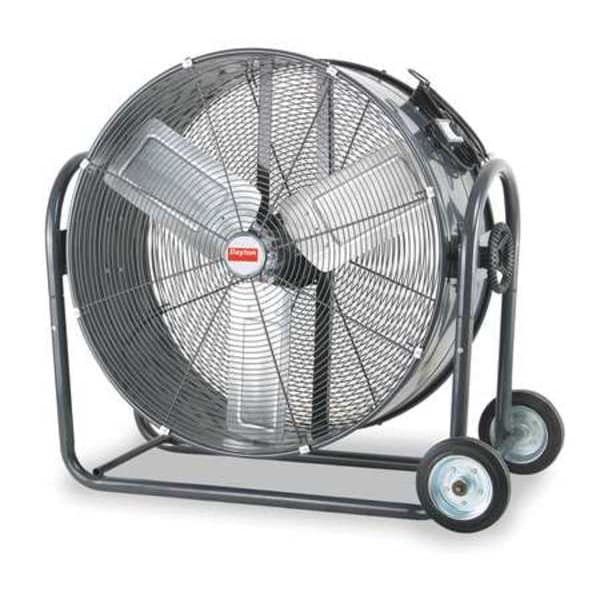

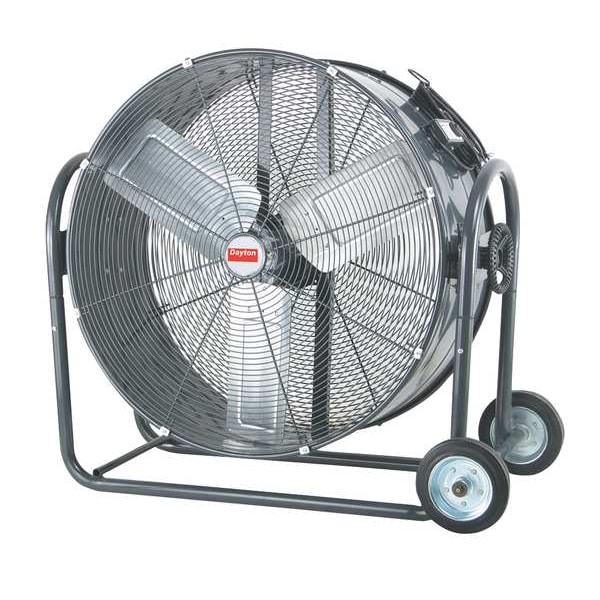

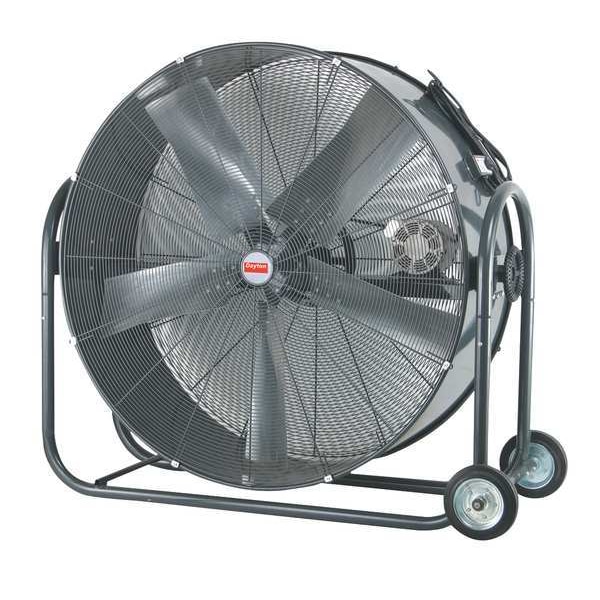

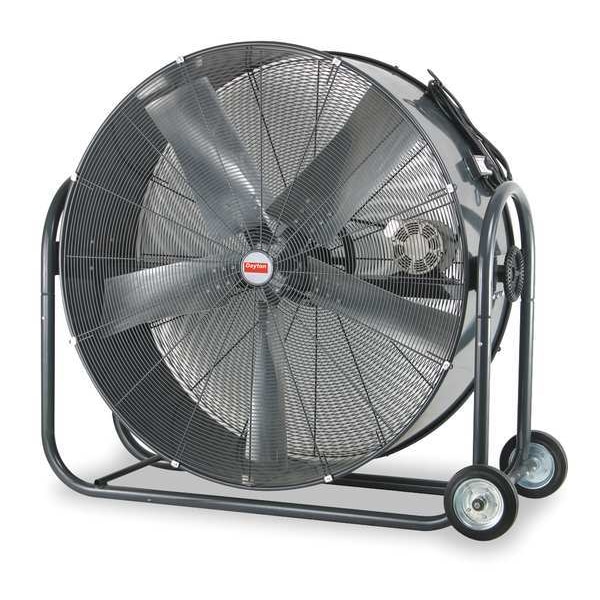

Standard Duty Air Circulator, Floor Mount, 42 in Blade Dia, 115V, 10,000/18,000 cfm
| Blade Diameter | 42 in |
|---|---|
| Oscillation | Non-Oscillating |
| Number of Speeds | 2 |
| Voltage | 115V |
| Phase | 1 |
| Motor HP | 1 HP |
| Air Flow | 10,000/18,000 cfm |
| Drive Type | Belt Drive |
| Blade Material | Aluminum |
| Sound Level | 73 dBA |
| Item | Air Circulator |
| Height | 47-5/16 in |
| Assembled | Partially Assembled |
| Outside Dia. | 43-1/4 in |
| Includes | Cord Wrap and Tilt Wheel, 7" Plastic and Rubber Casters |
| Hz | 60 |
| Shaft Dia. | 17 mm |
| CFM High | 18,000 |
| Air Velocity @ 60 Ft. | 50/05 fpm |
| Bearing Type | Ball |
| Motor RPM | 360/260 RPM |
| Application | Spot Cooling and People Cooling; Air Circulation |
| Fan Style | Standard Duty |
| Number of Blades | 5 |
| Watts | 800/600 W |
| Air Velocity @ 40 Ft. | 100/50 fpm |
| Motor Type | Permanent Split Capacitor |
| Guard Material | Steel |
| Wire Guard Finish | Polyester Powder Coated |
| NEMA Plug Configuration | 5-15p |
| Air Velocity @ 20 Ft. | 220/160 fpm |
| CFM Low | 10,000 |
| Max. Ambient Temp. | 104 deg F |
| Width | 51-1/16 in |
| Standards | UL/cUL Listed, OSHA compliant wire guards |
| Housing Material | Steel |
| Fan Accessory Style | Standard |
| Thermal Protection | Automatic Reset |
| Motor Insulation | Class B |
| Max. Depth | 22-1/2 in |
| Number of Conductors | 3 |
| Mobile/Stationary | Mobile |
| Environmental Applications | Industrial |
| Motor Enclosure | Open Air Over |
| Fan Mounting Location | Floor |
| Wheel Material | Steel/Rubber |
| Fan Housing Material | Steel |
| Depth | 22-1/2 in |
| Wheel Dia. | 7 in |
| Fan Cord Length | 9 ft |
| Head Tilt Adjustment | 360 deg |
| Color | Gray |
| Assembly Required | Yes |
| Wheeled Base | Mobile |
| Amps | 7.0/6.0 |
| Height Adjustment | Fixed Height |
| RPM | 1100/800 |
| Material | Steel |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
