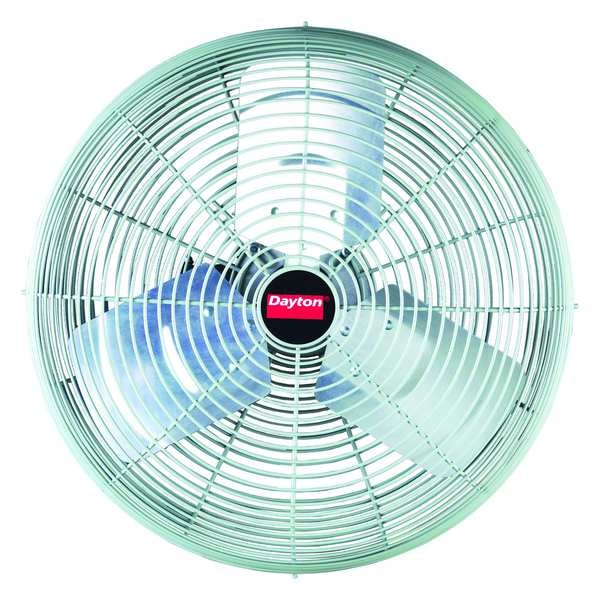

Standard Duty Industrial Fan, Ceiling, IBeam, Pedestal, Wall Mount, 20 in Blade Dia, 115V
| Blade Diameter | 20 in |
|---|---|
| Oscillation | Non-Oscillating |
| Number of Speeds | 2 |
| Voltage | 115V |
| Phase | 1 |
| Motor HP | 0.25 HP |
| Air Flow | 3,080/4,750 cfm |
| Drive Type | Direct Drive |
| Blade Material | Aluminum |
| Sound Level | 72 dBA |
| Item | Industrial Fan |
| Motor RPM | 1,100/850 RPM |
| Fan Mounting Location | Wall, Ceiling, Pedestal, IBeam |
| Guard Material | Steel |
| NEMA Plug Configuration | 5-15p |
| Shaft Dia. | 1/2 in |
| Includes | Mounting Bolts |
| Motor Enclosure | Totally Enclosed Air Over |
| Number of Conductors | 3 |
| Requires | Mounting Device |
| Air Velocity @ 20 Ft. | 585/380 fpm |
| Environmental Applications | Industrial |
| Standards | UL, cUL, OSHA |
| Application | Spot Cooling and People Cooling |
| Number of Blades | 3 |
| Air Velocity @ 10 Ft. | 910/600 fpm |
| Housing Material | Steel |
| Fan Accessory Style | Standard |
| Motor Type | Permanent Split Capacitor |
| Fan Style | Standard Duty |
| Motor Insulation | Class B |
| Outside Dia. | 23 in |
| Wire Guard Finish | Polyester Powder Coated |
| CFM High | 4,750 |
| Watts | 220/160 W |
| Height | 23 in |
| Thermal Protection | Automatic Reset |
| CFM/Watt | 21.59 |
| Assembled | Yes |
| Max. Depth | 13-1/8 in |
| Bearing Type | Ball |
| Hz | 60 |
| Max. Ambient Temp. | 104 deg F |
| Width | 23 in |
| Air Velocity @ 40 Ft. | 150/100 fpm |
| CFM Low | 3,080 |
| Mobile/Stationary | Stationary |
| RPM | 1100/850 |
| Height Adjustment | Fixed Height |
| Amps | 2.0/1.4 |
| Depth | 13-1/8 in |
| Fan Cord Length | 10 ft |
| Color | Gray |
| Wheeled Base | Stationary |
| Assembly Required | No |
| Fan Housing Material | Steel |
| Material | Steel |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
