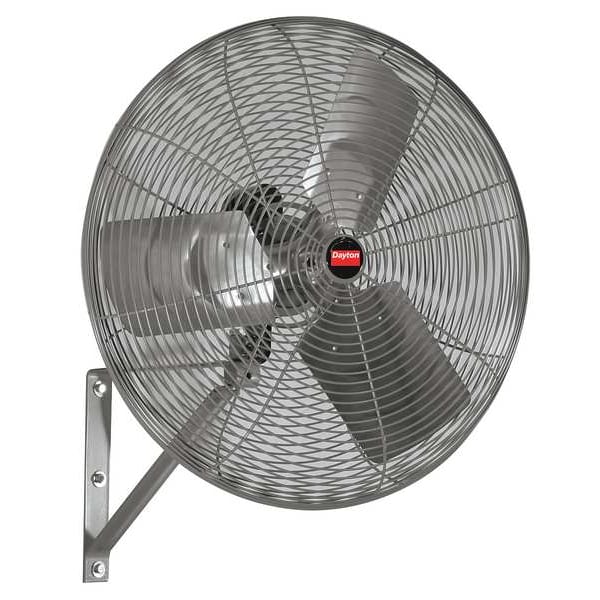

Standard Duty Industrial Fan, Wall Mount, 18 in Blade Dia, 115V, 2,900/4,500 cfm, Oscillating
| Blade Diameter | 18 in |
|---|---|
| Oscillation | Oscillating |
| Number of Speeds | 2 |
| Voltage | 115V |
| Phase | 1 |
| Motor HP | 0.25 HP |
| Air Flow | 2,900/4,500 cfm |
| Drive Type | Direct Drive |
| Blade Material | Aluminum |
| Sound Level | 70 dBA |
| Item | Industrial Fan |
| Max. Ambient Temp. | 104 deg F |
| Mobile/Stationary | Stationary |
| Housing Material | Steel |
| Air Velocity @ 40 Ft. | 110/95 fpm |
| Motor Insulation | Class B |
| Number of Blades | 3 |
| Fan Accessory Style | Standard |
| Shaft Dia. | 1/2 in |
| CFM High | 4,500 |
| Includes | Mounting Bolts, Safety Support Cable, Assembly Hardware |
| Outside Dia. | 23 in |
| Guard Material | Steel |
| Application | Spot Cooling and People Cooling |
| Hz | 60 |
| Motor Type | Permanent Split Capacitor |
| Width | 23 in |
| Standards | UL, cUL, OSHA |
| Height | 23 in |
| Wire Guard Finish | Polyester Powder Coated |
| Watts | 183/147 W |
| Thermal Protection | Automatic |
| Max. Depth | 14-1/4 in |
| Fan Style | Standard Duty |
| Bearing Type | Ball |
| Air Velocity @ 10 Ft. | 970/670 fpm |
| Air Velocity @ 20 Ft. | 360/310 fpm |
| Fan Mounting Location | Wall |
| Motor Enclosure | Totally Enclosed Air Over |
| CFM Low | 2,900 |
| Assembled | Yes |
| Motor RPM | 1,075/700 RPM |
| Environmental Applications | Industrial |
| Fan Housing Material | Steel |
| RPM | 1075/700 |
| Fan Cord Length | 10 ft |
| Assembly Required | No |
| Amps | 1.7/1.6 |
| Wheeled Base | Stationary |
| Depth | 14-1/4 in |
| Material | Steel |
| Color | Gray |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
