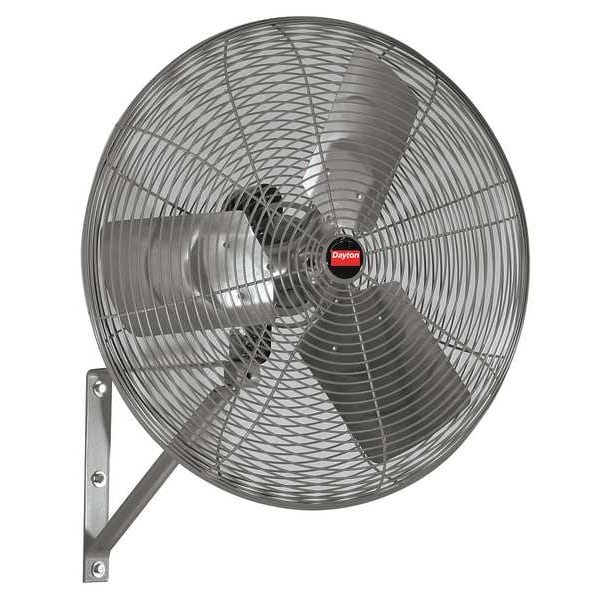

Standard Duty Industrial Fan, Wall Mount, 30 in Blade Dia, 115V, 8,674/9,612 cfm, Oscillating
| Blade Diameter | 30 in |
|---|---|
| Oscillation | Oscillating |
| Number of Speeds | 2 |
| Voltage | 115V |
| Phase | 1 |
| Motor HP | 0.5 HP |
| Air Flow | 8,674/9,612 cfm |
| Drive Type | Direct Drive |
| Blade Material | Aluminum |
| Sound Level | 78 dBA |
| Item | Industrial Fan |
| Motor Type | Permanent Split Capacitor |
| Number of Blades | 3 |
| Air Velocity @ 60 Ft. | 175/160 fpm |
| Motor Insulation | Class B |
| Standards | UL, cUL, OSHA |
| Motor RPM | 1,075/600 RPM |
| Height | 33 in |
| Mobile/Stationary | Stationary |
| Bearing Type | Ball |
| Fan Style | Standard Duty |
| Guard Material | Steel |
| Assembled | Yes |
| Includes | Mounting Bolts, Safety Support Cable, Assembly Hardware |
| Air Velocity @ 10 Ft. | 1,220/1,130 fpm |
| Shaft Dia. | 1/2 in |
| Air Velocity @ 40 Ft. | 340/310 fpm |
| Wire Guard Finish | Polyester Powder Coated |
| Max. Depth | 19 in |
| Watts | 412/352 W |
| Fan Mounting Location | Wall |
| Environmental Applications | Industrial |
| Max. Ambient Temp. | 104 deg F |
| CFM Low | 8,674 |
| Thermal Protection | Automatic |
| Width | 33 in |
| Outside Dia. | 33 in |
| Application | Spot Cooling and People Cooling |
| Air Velocity @ 20 Ft. | 710/650 fpm |
| Fan Accessory Style | Standard |
| Hz | 60 |
| CFM High | 9,612 |
| Motor Enclosure | Totally Enclosed Air Over |
| Housing Material | Steel |
| Depth | 19 in |
| RPM | 1075/600 |
| Assembly Required | No |
| Fan Cord Length | 10 ft |
| Wheeled Base | Stationary |
| Amps | 4.06/2.61 |
| Fan Housing Material | Steel |
| Material | Steel |
| Color | Gray |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
