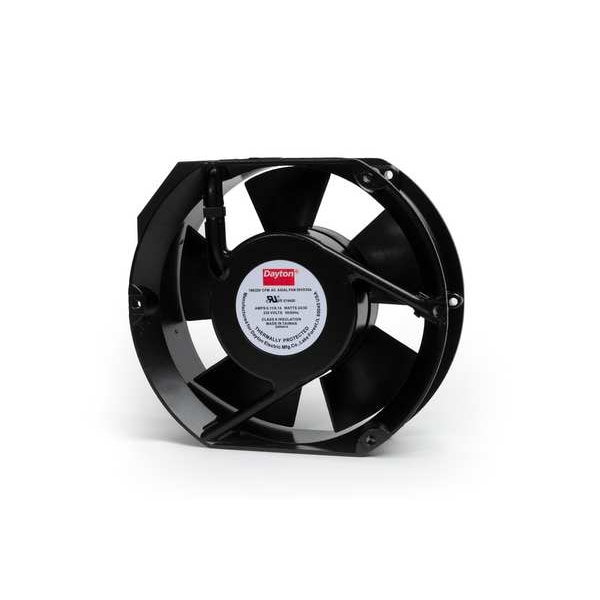

Standard Oblong Axial Fan, 230V AC, Aluminum, 5 15/16 in W.
| Blade Material | PBT Plastic |
|---|---|
| CFM @ 0.000-In. SP | 229 cfm |
| Depth | 2 in |
| Height | 6-3/4 in |
| Housing Material | Aluminum |
| Watts | 24/30 W |
| Width | 5-15/16 in |
| Voltage | 230V AC |
| RPM | 2900/3300 RPM |
| Fan Cord Length | No Cord |
| Standards | cULus, RoHS |
| Item | Standard Oblong Axial Fan |
| Requires | Cord Set (Not Included) |
| Max. Ambient Temp. | 176 deg F |
| Motor Design | Permanent Split Capacitor |
| Bearing Type | Ball |
| IP Rating | IP33 |
| Environmental Applications | Equipment Cooling |
| Motor Insulation | Class A |
| Sound Level | 59/62 |
| Mounting Eye O.C. | 6-3/8 in |
| Electrical Connection - Fans | Terminals |
| Fan Shape | Oblong |
| Mounting Position | Vertical or Horizontal |
| Air Flow | 196/229 cfm |
| Hz | 50/60 Hz |
| Color | Black |
| Amps | 0.11/0.14 A |
| Country of Origin (subject to change) | Taiwan, Province of China |
| Package Quantity | 1 |
