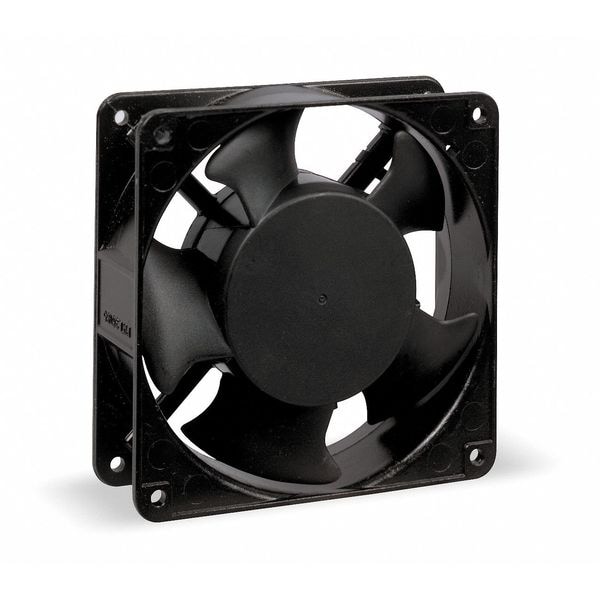

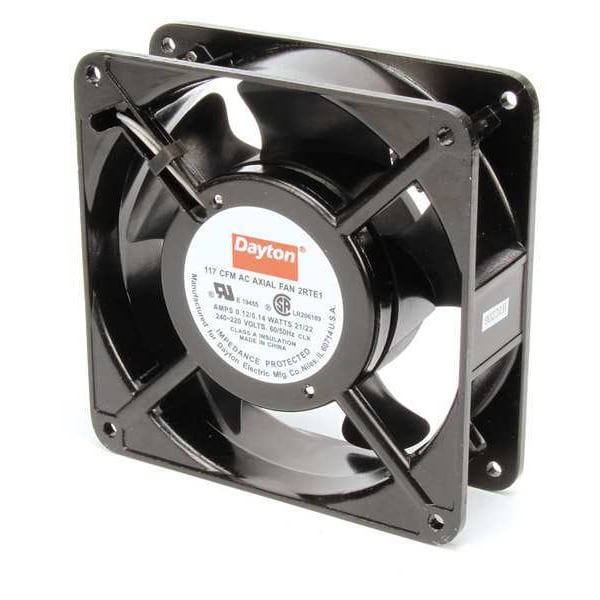

Standard Square Axial Fan, Square, 230V AC, 1 Phase, Aluminum, 4 11/16 in W.
| Blade Material | Polybutylene |
|---|---|
| CFM @ 0.000-In. SP | 115/95 cfm |
| Depth | 1-1/2 in |
| Height | 4-11/16 in |
| Housing Material | Aluminum |
| Phase | 1 |
| Shape | Square |
| Watts | 21/22 W |
| Width | 4-11/16 in |
| Voltage | 230V AC |
| Item | Standard Square Axial Fan |
| Standards | RoHS Compliant, UL Recognized |
| Fan RPM | 3,150 |
| Motor Insulation | Class A |
| Electrical Connection - Fans | Terminals |
| Fan Watts | 21 |
| Bearings | Ball |
| Fan Depth | 1-1/2 in |
| Electrical Connections | Terminals |
| Amps | 0.12/0.14 A |
| Fan Height | 4-11/16 in |
| dBA | 50 |
| Requires | Cord Set (Not Included) |
| Max. Ambient Temp. | 158 deg F |
| Motor Type | Shaded pole |
| Mounting Position | Vertical or Horizontal |
| Thermal Protection | Impedance |
| Fan dBA | 50 |
| Housing Finish | Black Painted |
| Mounting Eye O.C. | 4-1/8 in |
| Hz | 60/50 Hz |
| Mounting Eye O.C. - Fans | 4-1/8 in |
| Fan Item | Axial Fan |
| Fan Width | 4-11/16 in |
| Fan Width | 4-11/16 in |
| Fan Voltage | 230VAC |
| Fan Shape | Square |
| IP Rating | IP20 |
| Bearing Type | Ball |
| RPM | 3150/2850 RPM |
| Environmental Applications | Equipment Cooling |
| Color | Black |
| Motor Design | Shaded Pole |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
