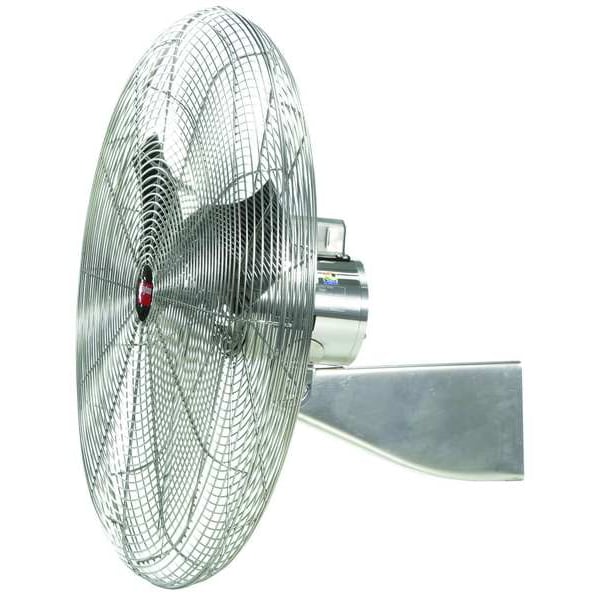

Washdown Industrial Washdown Fan, Wall Mount, 24 in Blade Dia, 115/230V, 5,220 cfm, Non-Oscillating
| Blade Diameter | 24 in |
|---|---|
| Oscillation | Non-Oscillating |
| Number of Speeds | 1 |
| Voltage | 115/230V |
| Phase | 1 |
| Motor HP | 0.25 HP |
| Air Flow | 5,220 cfm |
| Drive Type | Direct Drive |
| Blade Material | 304 Stainless Steel |
| Sound Level | 77 dBA |
| Item | Industrial Washdown Fan |
| Fan Accessory Style | Washdown |
| Air Velocity @ 40 Ft. | 198 fpm |
| Bearing Type | Ball |
| Air Velocity @ 60 Ft. | 135 fpm |
| Fan Style | Washdown |
| Hz | 60 |
| Includes | Stainless Steel Wall Bracket, Mounting Bolts and Secondary Safety Support Cable |
| Mobile/Stationary | Stationary |
| Max. Depth | 15 in |
| Motor Type | Permanent Split Capacitor |
| CFM High | 5,220 |
| Shaft Dia. | 1/2 in |
| Standards | Motors comply with cULus/OSHA/BISSC/USDA/NSF |
| Fan Mounting Location | Wall |
| Watts | 295/280 W |
| Motor Insulation | Class B |
| Height | 33 in |
| Max. Ambient Temp. | 105 deg F |
| Housing Material | Stainless steel |
| Assembled | Yes |
| Environmental Applications | Industrial |
| Air Velocity @ 20 Ft. | 600 fpm |
| Air Velocity @ 80 Ft. | 10 fpm |
| Air Velocity @ 10 Ft. | 875 fpm |
| Number of Blades | 3 |
| Width | 33 in |
| Application | Spot Cooling and People Cooling |
| Motor Enclosure | Totally Enclosed |
| CFM/Watt | 17.6 |
| Thermal Protection | Automatic |
| Motor RPM | 1,075 RPM |
| Outside Dia. | 33 in |
| Guard Material | 304 Stainless Steel |
| Wire Guard Finish | Electro Polish |
| Depth | 15 in |
| Assembly Required | No |
| Wheeled Base | Stationary |
| RPM | 1075 |
| Fan Housing Material | Steel |
| Amps | 3.28/1.68 |
| Material | Stainless steel |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
