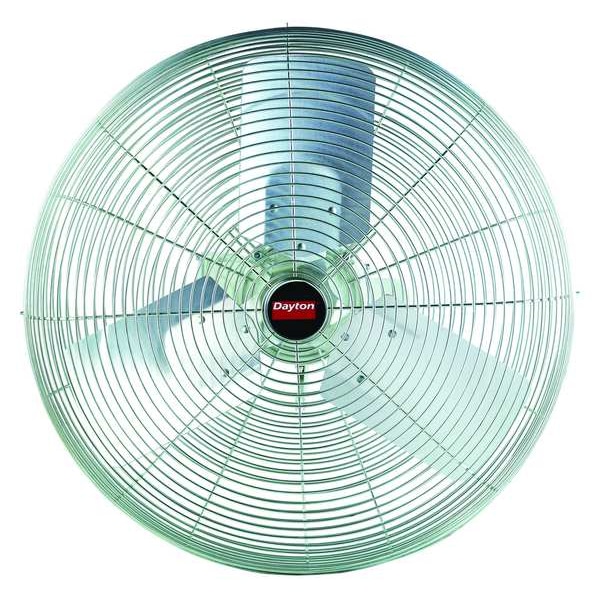

Washdown Industrial Washdown Fan, Wall Mount, 30 in Blade Dia, 115/230V, 10,050 cfm
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Blade Diameter | 30 in |
| Oscillation | Non-Oscillating |
| Number of Speeds | 1 |
| Voltage | 115/230V |
| Phase | 1 |
| Motor HP | 0.5 HP |
| Air Flow | 10,050 cfm |
| Drive Type | Direct Drive |
| Blade Material | Aluminum |
| Fan Power Source | Hardwired |
| Sound Level | 77 dBA |
| Item | Industrial Washdown Fan |
| CFM High | 10,050 |
| Hz | 60 |
| Thermal Protection | Automatic Reset |
| Fan Style | Washdown |
| Watts | 525 W |
| Environmental Applications | Industrial |
| Housing Material | Steel |
| Guard Material | Steel |
| Number of Blades | 3 |
| Standards | UL/cUL Listed, OSHA compliant wire guards |
| Fan Accessory Style | Washdown |
| Max. Depth | 24-1/4 in |
| Bearing Type | Ball |
| Height | 34-3/8 in |
| Motor Enclosure | Totally Enclosed Air Over |
| Air Velocity @ 20 Ft. | 800 fpm |
| Motor RPM | 1,100 RPM |
| Motor Insulation | Class F |
| Air Velocity @ 10 Ft. | 1,275 fpm |
| Air Velocity @ 60 Ft. | 180 fpm |
| Shaft Dia. | 5/8 in |
| Application | Spot cooling for food and beverage processing plants |
| Mobile/Stationary | Stationary |
| Includes | Wall Bracket, Safety Support Cable, Conduit Box |
| Outside Dia. | 33 in |
| Fan Mounting Location | Wall |
| Motor Type | Permanent Split Capacitor |
| Air Velocity @ 40 Ft. | 310 fpm |
| Width | 33 in |
| Max. Ambient Temp. | 104 deg F |
| Wire Guard Finish | Zinc Plated |
| Assembled | Yes |
| Color | Gray |
| RPM | 1100 |
| NEMA Plug Configuration | Hardwired |
| Amps | 4.3/2.3 |
| Fan Housing Material | Steel |
| Assembly Required | No |
| Wheeled Base | Stationary |
| Fan Cord Length | No Cord |
| Depth | 24-1/4 in |
| Height Adjustment | Fixed Height |
| Material | Steel |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
