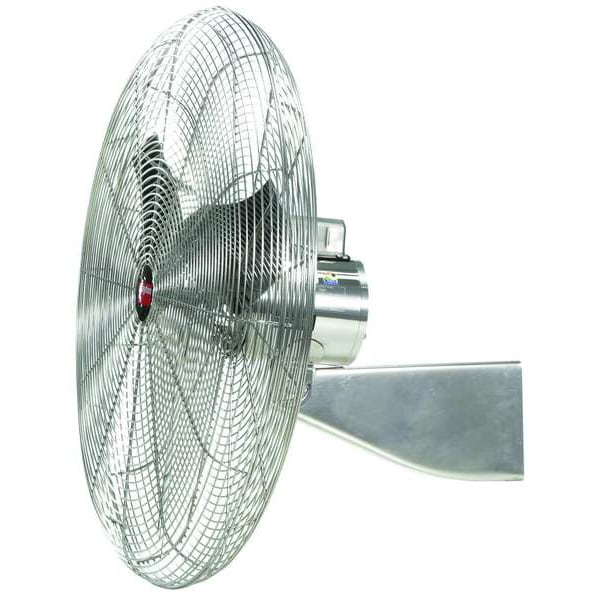

Washdown Industrial Washdown Fan, Wall Mount, 30 in Blade Dia, 115/230V, 8,800 cfm, Non-Oscillating
| Blade Diameter | 30 in |
|---|---|
| Oscillation | Non-Oscillating |
| Number of Speeds | 1 |
| Voltage | 115/230V |
| Phase | 1 |
| Motor HP | 0.3333 HP |
| Air Flow | 8,800 cfm |
| Drive Type | Direct Drive |
| Blade Material | 304 Stainless Steel |
| Sound Level | 81 dBA |
| Item | Industrial Washdown Fan |
| Thermal Protection | Automatic |
| Motor Enclosure | Totally Enclosed |
| Housing Material | Stainless steel |
| Assembled | Yes |
| Width | 33 in |
| Motor Insulation | Class B |
| Guard Material | 304 Stainless Steel |
| Environmental Applications | Industrial |
| Air Velocity @ 40 Ft. | 268 fpm |
| Max. Ambient Temp. | 105 deg F |
| Air Velocity @ 80 Ft. | 50 fpm |
| Standards | Motors comply with cULus/OSHA/BISSC/USDA/NSF |
| Number of Blades | 3 |
| Watts | 349/343 W |
| CFM High | 8,800 |
| Fan Accessory Style | Washdown |
| Height | 33 in |
| Fan Style | Washdown |
| Application | Spot Cooling and People Cooling |
| Motor RPM | 1,075 RPM |
| Hz | 60 |
| Outside Dia. | 33 in |
| CFM/Watt | 25.21 |
| Shaft Dia. | 1/2 in |
| Air Velocity @ 20 Ft. | 595 fpm |
| Air Velocity @ 60 Ft. | 165 fpm |
| Includes | Stainless Steel Wall Bracket, Mounting Bolts and Secondary Safety Support Cable |
| Max. Depth | 15 in |
| Fan Mounting Location | Wall |
| Wire Guard Finish | Electro Polish |
| Air Velocity @ 10 Ft. | 1,040 fpm |
| Mobile/Stationary | Stationary |
| Bearing Type | Ball |
| Motor Type | Permanent Split Capacitor |
| RPM | 1075 |
| Assembly Required | No |
| Fan Housing Material | Steel |
| Wheeled Base | Stationary |
| Depth | 15 in |
| Amps | 3.7/1.88 |
| Material | Stainless steel |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
