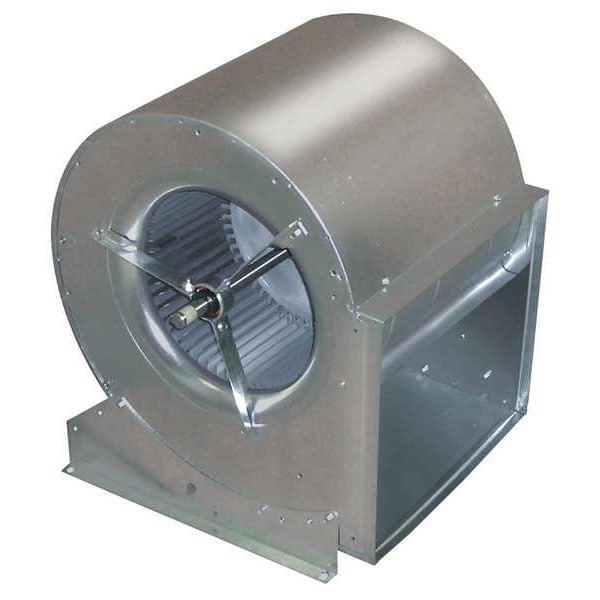

Blower, BD, Less Motor, 15-1/2 Wheel, Shaft Dia.: 1 3/16 in
| Wheel Dia. (In.) | 15-1/2 |
|---|---|
| Item | Blower |
| Type | Double Inlet Forward Curve, Belt Drive, Less Motor |
| Wheel Width (In.) | 15-1/16 |
| Mounting | Multipostion |
| Housing Finish | Galvanized Steel |
| Housing Width (In.) | 19-5/8 |
| Shaft Dia. | 1-3/16 in |
| Discharge Width (In.) | 18-5/8 |
| Discharge Height (In.) | 15-7/8 |
| Bearing Type | Ball |
| Housing Material | Steel |
| Housing Height (In.) | 24-1/4 |
| Wheel Material | Steel |
| Max. Ambient Temp. (F) | 104 |
| Max. Inlet Temp. (Deg. F) | 250 |
| Housing Depth (In.) | 22-11/16 |
| Rotation | CW, CCW |
| Wheel Type | Forward-Curved |
| Drive Type | Belt Drive |
| Includes | Mounting Hardware |
| Minimum Ambient Temperature | -65 deg F |
| Features | Base Feet can be Mounted for Various Discharge Positions, Blower Housings Have Extruded Holes to Give Greater Holding Power for Mounting Base Sides and Motor Bracket, Capacity Range 200 to 8000 cfm, Shaft Dimensions and Finish are Carefully Controlled to Ensure Quiet, Trouble Free Operation, Shafts for Ball Bearing Models have Keywayed Ends, the Blower Wheel has an Exclusive Centre Disc which Allows Blowers to be Used Safely at Speeds Well Above Any Normal Requirement |
| Discharge Position | Bottom Horizontal, Down Blast, Top Horizontal, Up Blast |
| Wheel Material Finish | Zinc Plated |
| Housing Width | 19.6 in |
| Number of Discharge Positions | 4 |
| Includes Motor | No |
| For High-Static Pressure Applications | Yes |
| Resistance Properties | Corrosion Resistant |
| Maximum Ambient Temperature | 250 deg F |
| Outlet Height | 15-7/8 in |
| Spark Resistant Construction Type | Not Rated |
| Overall Depth | 22-5/8 in |
| Includes Drive Package | No |
| Overall Height | 25-3/4 in |
| Hazardous Location Application | No |
| Maximum Motor Speed | Not Applicable |
| Minimum Motor Speed | Not Applicable |
| Mount Type | Multiposition |
| Flange Type | Non-Flanged |
| Housing Height | 25.7 in |
| Includes Mounting Hardware | Yes |
| Overall Width | 19-5/8 in |
| Assembly | Unassembled |
| Minimum Airflow | 8,250 cfm |
| For Air Type | General/Clean |
| Chemical Resistant | No |
| Maximum Motor Horsepower | 10 HP |
| Outlet Width | 18-5/8 in |
| Outlet Shape | Rectangular |
| Market | Industrial, Commercial, Residential |
| OEM Replacement | No |
| Shaft Diameter | 1 in |
| Housing Material Grade | G90 |
| Number of Inlets | 2 |
| Wheel Width | 15 in |
| Maximum Fan Speed | 1,800 rpm |
| Wheel Diameter | 15-1/2 in |
| Hazardous Location Specification | Not Applicable |
| Maximum Inlet Air Temperature | 250 deg F |
| Housing Material Finish | Galvanized |
| Maximum Airflow | 9,750 cfm |
| Maximum Static Pressure | 2.5 in wc |
| Inlet Diameter | 12-1/2 in |
| Corrosion Resistant | Yes |
| Outlet Diameter | Not Applicable |
| Minimum Motor Horsepower | 0.3125 HP |
| Housing Depth | 22.6 in |
| Country of Origin (subject to change) | Canada |
| Package Quantity | 1 |
