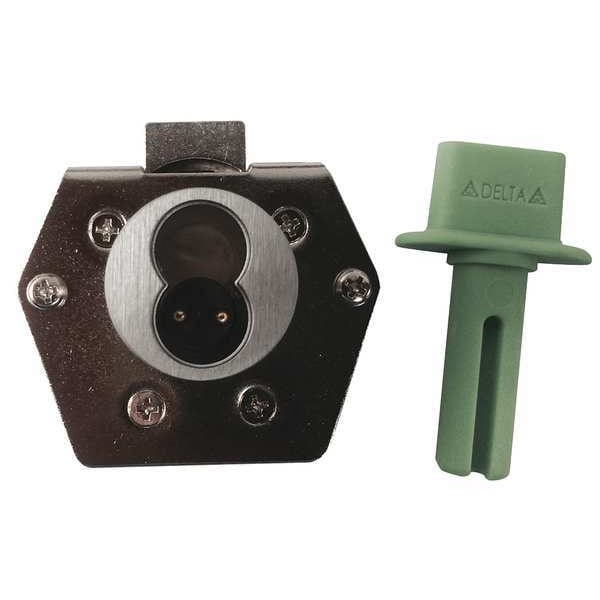

Interchangeable Core Drawer Dead Latch, Brushed Chrome, 1-1/16 For Door Thickness, 0 Number of Keys
| For Door Thickness (In.) | 1-1/16 |
|---|---|
| Item | Interchangeable Core Drawer Dead Latch |
| Key Type | SFIC |
| Keying | Coreless |
| Finish | Brushed Chrome |
| Opens With | Key |
| Mounting Hole Dia. | 1-1/8 in |
| Number of Keys | 0 |
| Key Number | SFIC |
| For Material Thickness | 1 1/16 in |
| Includes | (2) Mounting Screws |
| Drawer and Cabinet Lock Mounting Style | Rim |
| Drawer and Cabinet Lock Orientation | Vertical |
| Mounting Hardware | Included |
| Lock Style | Drawer |
| Lock Type | Dead Latch |
| Mounting Hole Dia. (In.) | 1-1/8 |
| Interchangeable Core | Yes |
| Max. Latching Distance (In.) | 1.135 |
| Standards | ANSI 156.11 |
| Latch Bolt Shape | Oval |
| Unlock Turn Direction | Clockwise |
| Package Quantity | 1 |
| Lock Body Material | Zinc Die-Cast |
| Mounting Style | Rim |
| Key Retaining | Yes |
| Distance Between Mounting Holes | 2-3/16 in |
| Cabinet Lock Type | Deadlatch Locks |
| Mounting Hardware Required | Yes |
| Latch Bolt Projection | 1-9/64 in |
| Rear Projection | 3/8 in |
| Security Level | General Security |
| Lock Orientation | Vertical |
| Body Height | 2-5/32 in |
| For Material | Wood, Metal, Plastic |
| Lock Body Shape | Rectangular |
| Lock Body Color | Silver |
| Body Thickness | 2-3/16 in |
| Lock Body Finish | Chrome-Plated |
| Body Width | 15/32 in |
| Number of Mounting Holes | 2 |
| Unlocking Radius | Quarter-Turn |
| Includes Mounting Hardware | Yes |
| Throw Length | 3/4 in |
| Interchangeable Core Type | SFIC |
| Type | Cabinet Door |
| Country of Origin (subject to change) | China |
