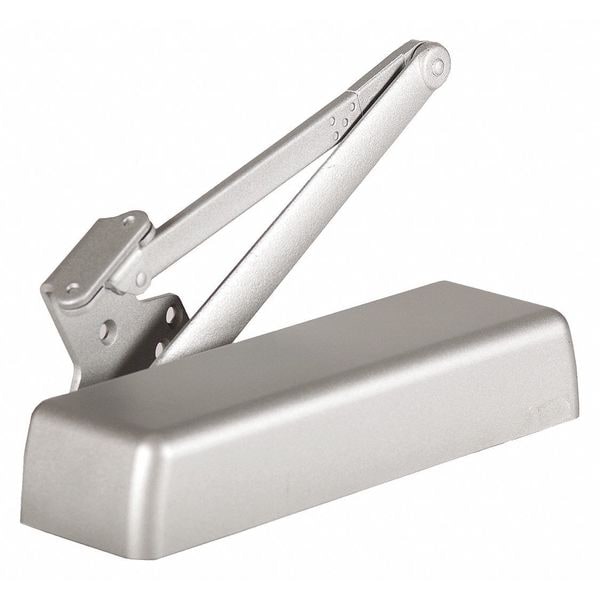

Manual, Hydraulic, Stanley QDC 100, Door Closer, Extra Heavy Duty Interior and Exterior, Gray
| Item | Door Closer |
|---|---|
| Closer Mounting Style | Parallel, Regular, Top Jamb |
| Closer Performance | Extra Heavy Duty |
| Closer Series | Stanley QDC 100 |
| Closer Type | Non Hold Open |
| Color | Gray |
| Finish | Aluminum Painted |
| Hand Orientation | Non-Handed |
| Housing Depth | 2-1/4 in |
| Housing Height | 3-1/2 in |
| Housing Length | 12-3/16 in |
| Interior/Exterior | Interior, Exterior |
| Hydraulic/Pneumatic | Hydraulic |
| Automatic/Manual | Manual |
| Material | Cast Iron |
| Ligature Resistant | No |
| Mounting Hardware | Included |
| Interior Door Width | Up to 54 in |
| Exterior Door Width | Up to 54 in |
| Projection from Wall | 2-1/4 in |
| Max. Door Opening | 180 Degrees |
| Spring Size | Adjustable 1 to 6 |
| Arm Type | Tri Packed |
| Arm Material | Carbon Steel |
| Standards | ANSI/BHMA A156.4, Grade 1; ANSI A117.1, Accessibility Code (ADA Compliant); UL/cUL; UL10C; UL10B |
| Includes | Full Size Cover, Mounting Screws |
| ADA Compliant | Yes |
| Category Type | Regular Arm |
| Features | Long Term Usage, Staked Valves |
| Series | QDC100 |
| Projection | 2-1/4 in |
| Fire Rating | 3 hr |
| Spring Size - Maximum | 6 |
| Length Between Mounting Holes | 4 in |
| Ligature-Resistant | Not Ligature-Resistant |
| Product Type | Door Closer |
| Door Opening - Maximum | 180 deg |
| Height Between Mounting Holes | 2-1/4 in |
| Spring Type | Adjustable |
| Includes Hardware | Hardware Included |
| Operation Style | Manual |
| Interior Door Width - Maximum | 54 in |
| UL Fire Rating | UL10C, UL10B |
| ANSI/BHMA Finish | Aluminum Painted |
| Interior/Exterior Use | Interior, Exterior |
| Spring Size - Minimum | 1 |
| Exterior Door Width - Maximum | 54 in |
| Performance Grade | 1 |
| Country of Origin (subject to change) | Korea, Republic of |
| Package Quantity | 1 |
