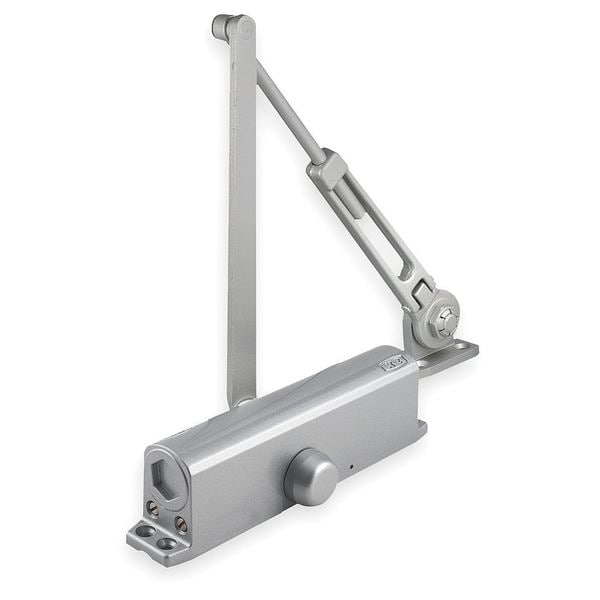

Manual, Hydraulic, Stanley QDC 300, Door Closer, Standard Duty Interior and Exterior, Gray
| Item | Door Closer |
|---|---|
| Closer Mounting Style | Parallel, Regular, Top Jamb |
| Closer Performance | Standard Duty |
| Closer Series | Stanley QDC 300 |
| Closer Type | Hold Open |
| Color | Gray |
| Finish | Aluminum Painted |
| Hand Orientation | Non-Handed |
| Housing Depth | 3-3/16 in |
| Housing Height | 2-5/8 in |
| Housing Length | 9-13/16 in |
| Interior/Exterior | Interior, Exterior |
| Hydraulic/Pneumatic | Hydraulic |
| Automatic/Manual | Manual |
| Material | Cast Aluminum |
| Interior Door Width | Up to 58 in |
| Projection from Wall | 3-3/32 in |
| Ligature Resistant | No |
| Spring Size | Adjustable 1 to 6 |
| Max. Door Opening | 120 Degrees |
| Exterior Door Width | Up to 54 in |
| Mounting Hardware | Included |
| Includes | Hex Nuts, Self Tapping Screws |
| Arm Material | Carbon Steel |
| Standards | ANSI/BHMA A156.4 Series, Grade 1; ANSI A117.1; UL/cUL; UL10C; UL10B |
| ADA Compliant | Yes |
| Arm Type | Tri Pack with Hold Open |
| Category Type | Parallel Arm |
| Series | QDC300 |
| Door Handing | Non-Handed |
| Type | No Cover |
| Mounting Style | Tri-Pack Standard |
| Hand | Hold-Open |
| UL Fire Rating | UL10C, UL10B |
| Ligature-Resistant | Not Ligature-Resistant |
| Fire Rating | 3 hr |
| Spring Size - Maximum | 6 |
| Interior/Exterior Use | Interior, Exterior |
| Interior Door Width - Maximum | 58 in |
| Spring Type | Adjustable |
| Door Opening - Maximum | 120 deg |
| Projection | 3-1/8 in |
| Exterior Door Width - Maximum | 54 in |
| Includes Hardware | Hardware Included |
| ANSI/BHMA Finish | Aluminum Painted |
| Spring Size - Minimum | 1 |
| Product Type | Door Closer |
| Height Between Mounting Holes | 1-1/4 in |
| Operation Style | Manual |
| Length Between Mounting Holes | 9-1/16 in |
| Stop Type | Standard |
| Performance Grade | 2 |
| Country of Origin (subject to change) | Korea, Republic of |
| Package Quantity | 1 |
