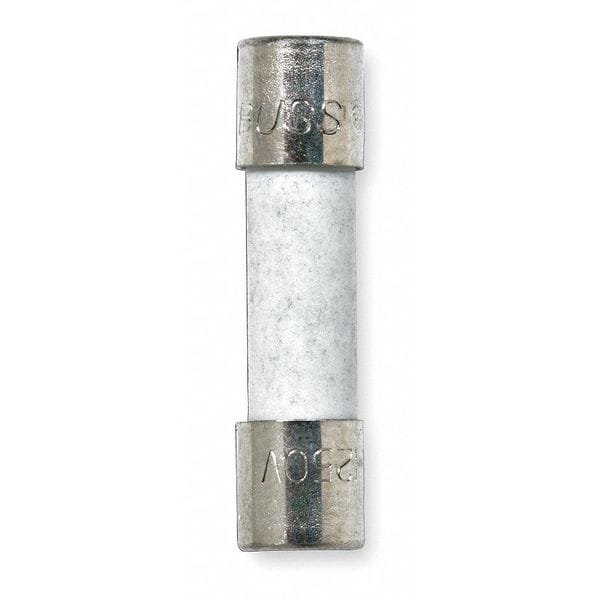

Ceramic Fuse, S505 Series, Time-Delay, 2A, 250V AC, 1.5kA at 250V AC, 5 PK
| Series | S505 |
|---|---|
| Speed | Time-Delay |
| Amps | 2A |
| AC Voltage Rating | 250V AC |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 1.5kA at 250V AC |
| Body Style | Cylindrical |
| Diameter | 5 mm |
| Length | 20 mm |
| Body Material | Ceramic |
| Equivalent Brand and Series | Bussmann S505, Littelfuse 215, Mersen GSF |
| Compatible Fuse Block Series | HTB |
| DC Voltage Rating | 32V DC |
| Item | Ceramic Fuse |
| Element | Single |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Fuse Holder Code | E |
| Standards | BSI, CCC, CSA, IMQ, SEMKO, UL, VDE |
| Equivalent Series | 215, GSF, S505 |
| Weight | 0.003 lb |
| Package Quantity | 5 |
