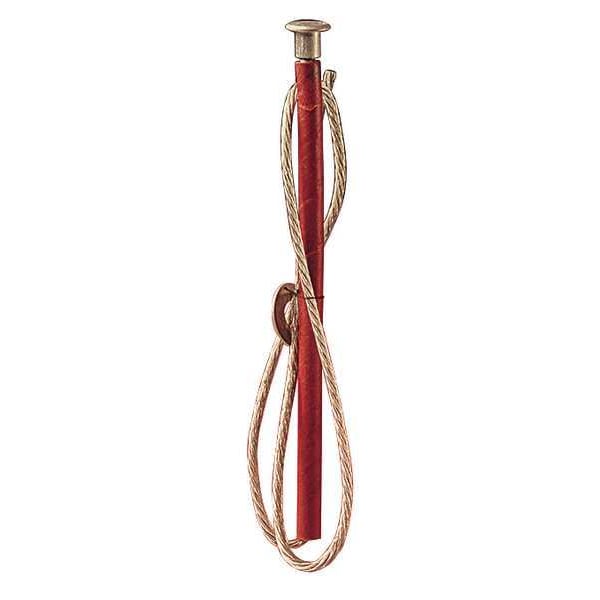

Cutout Link, FL11 Series, 25A, Fast-Acting, 27,000V AC, Pin, N Link Type, Nonremovable
| Item | Cutout Link |
|---|---|
| Series | FL11 |
| Amps | 25A |
| Speed | Fast-Acting |
| AC Voltage Rating | 27,000V AC |
| DC Voltage Rating | Not Rated |
| Body Style | Pin |
| Link Type | N |
| Button-Head Type | Nonremovable |
| Length | 23 in |
| Equivalent Brand and Series | Bussmann FL11 |
| Equivalent Series | FL11 |
| For Use With | Standard Medium Voltage Fused Cutouts Rated to 27kV |
| Fuse Amps | 25 A |
| Element Material | Tin |
| Standards | EEI-NEMA |
| Height | 23 IN |
| Width | .75 IN |
| Element | Single |
| Application | Medium voltage fused cutouts |
| Type | N |
| Package Quantity | 1 |
