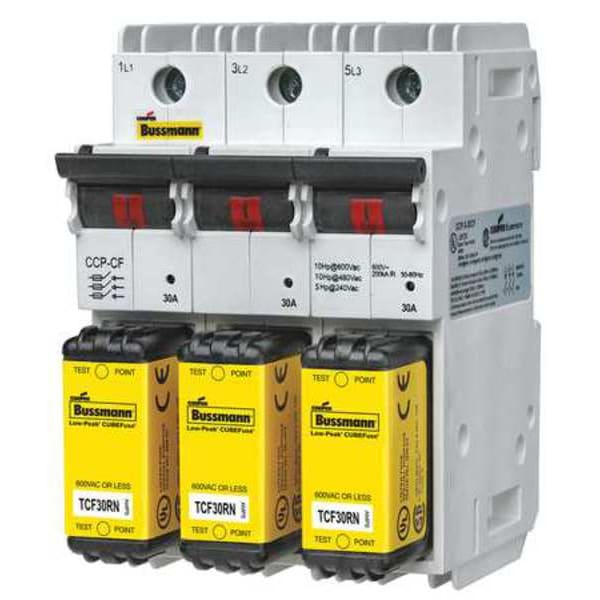

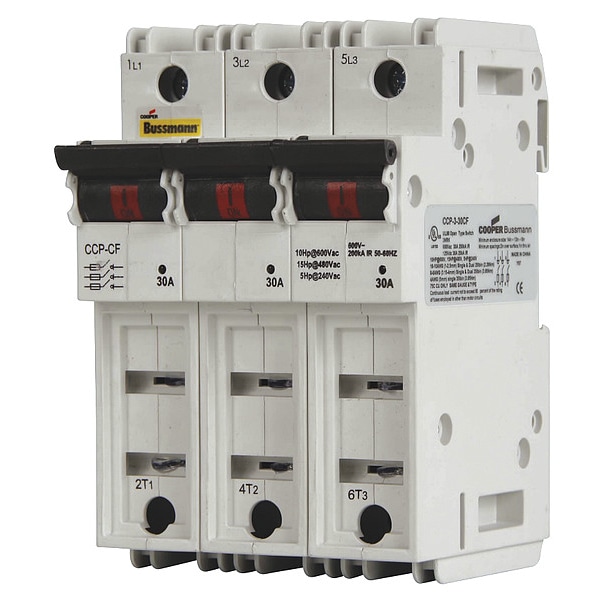

Disconnect Switches, 0 to 30A Amp Range, 600V AC Volt Rating, 3 Poles, Box Lug
| Item | Disconnect Switches |
|---|---|
| Amp Range | 0 to 30A |
| Voltage Rating | 600V AC |
| Number of Poles | 3 |
| Connector Type | Box Lug |
| Fits Fuse Type | Class J Fuse |
| Max. Wire Size | 4 AWG |
| Width | 3 in |
| For Use With | 35mm |
| Min. Wire Size | 18 AWG |
| Interrupt Rating | 200 kA @ 600 VAC |
| Amps | 30 |
| Pieces per Foot | 4 |
| Depth | 4-1/2 in |
| Height | 3 in |
| Standards | UL 98 |
| Features | Finger Safe |
| Length | 4-1/2 in |
| Series | CCP2 |
| Fuse UL Class | J |
| Wire Range | 18 to 4 AWG |
| Visual Indication | Indicating |
| Mounting Style | DIN Rail |
| For Fuse Size | 1-7/8 in L x 3/4 in W x 1 in dia |
| Fuse Block Design | Finger-Safe |
| Fuse Type | CUBEFuse |
| Product Type | Finger-Safe Fuse Block with Disconnect Switch |
| Includes Auxiliary Contact | No |
| Includes Communication Feature | No |
| Short Circuit Current (KA) | 200 kA |
| Weight | 3.7 lb |
| Frequency Range (Hz) | 50/60 Hz |
| Max. Amps | 30 |
| Fits Fuse Block Style | Rejection |
| Max. Voltage | 600V AC |
| For Fuse Class | J |
| Package Quantity | 1 |
