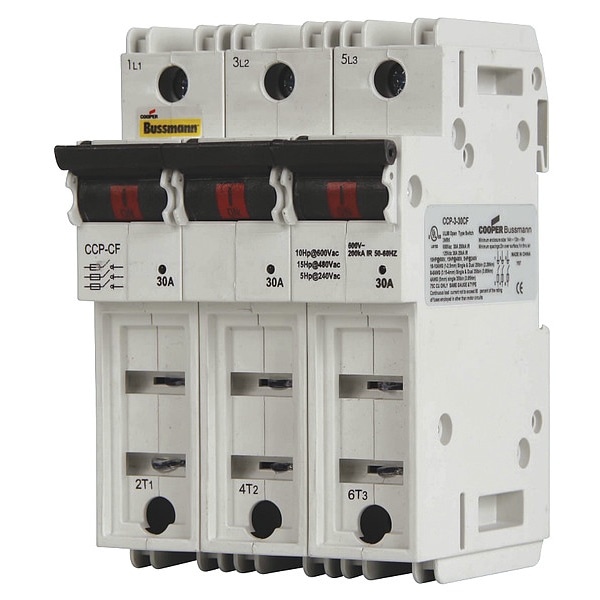

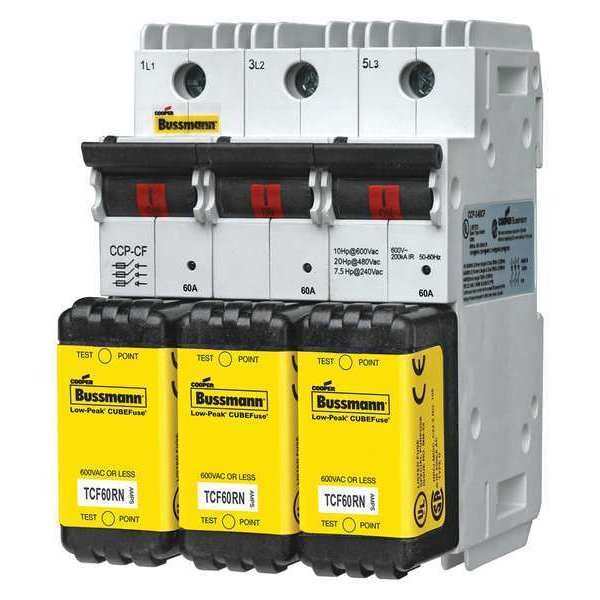

Disconnect Switches, 31 to 60A Amp Range, 600V AC Volt Rating, 3 Poles, Box Lug
| Item | Disconnect Switches |
|---|---|
| Amp Range | 31 to 60A |
| Voltage Rating | 600V AC |
| Number of Poles | 3 |
| Connector Type | Box Lug |
| Fits Fuse Type | Class J Fuse |
| Depth | 4-1/2 in |
| For Use With | 35mm |
| Max. Wire Size | 4 AWG |
| Height | 3 in |
| Min. Wire Size | 18 AWG |
| Interrupt Rating | 200 kA @ 600 VAC |
| Width | 3 in |
| Pieces per Foot | 4 |
| Amps | 60 |
| Series | CCP2 |
| Features | Finger Safe, Lock-On provision |
| Length | 3-1/2 in |
| Mounting Style | DIN-Rail |
| Visual Indication | Indicating |
| Fuse Block Design | Finger-Safe |
| For Fuse Size | 2-1/8 in L x 1 in W x 1-1/8 in dia |
| Wire Range | 18 to 4 AWG |
| Fuse UL Class | J |
| Fuse Block or Fuse Holder Type | UL98 fusible disconnect |
| Product Type | Finger-Safe Fuse Block with Disconnect Switch |
| Includes Communication Feature | No |
| Includes Auxiliary Contact | No |
| Short Circuit Current (KA) | 200 kA |
| Weight | 3.7 lb |
| Max. Voltage | 600V AC |
| Fits Fuse Block Style | Rejection |
| For Fuse Class | J |
| Max. Amps | 60 |
| Package Quantity | 1 |
