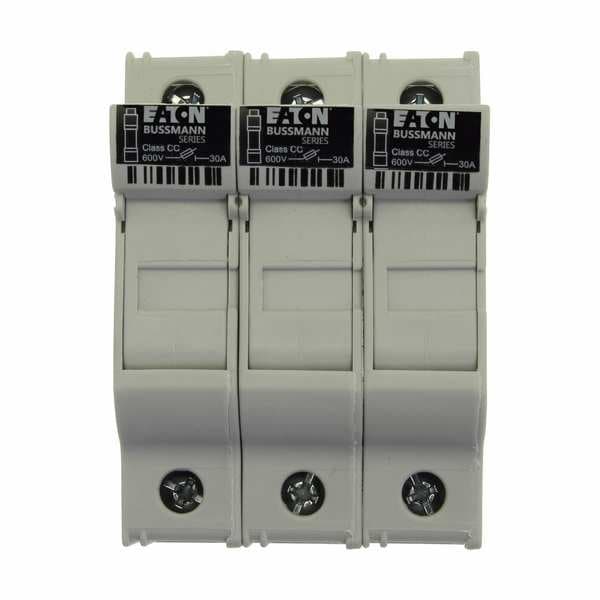

Finger Safe Fuse Block, 0 to 30A Amp Range, 600V AC/DC Volt Rating, 3 Poles, Box Lug; Clamp
| Item | Finger Safe Fuse Block |
|---|---|
| UL Class | CC |
| Series | CHCC |
| Number of Poles | 3 |
| Amp Range | 0 to 30A |
| Voltage Rating | 600V AC/DC |
| Connector Type | Box Lug, Clamp |
| Mounting Style | DIN-Rail |
| Visual Indication | Non-Indicating |
| Fuse Block Design | Finger-Safe |
| Body Material | Thermoplastic |
| Fuse Type | Industrial |
| Length | 2.44 in |
| For Fuse Series | FNQ-R, KTK-R, LP-CC |
| Height | 2.06 in |
| Standards | UL Listed |
| Fuse Holder Code | W |
| Width | 2.06 in |
| For Fuse Size | 1-1/2 in L x 13/32 in dia |
| Fits Fuse Type | Class CC |
| Wire Range | 18 AWG to 4 AWG |
| Max. Operating Temp. | 120 deg C |
| Weight | 0.22 lb |
| Includes Communication Feature | No |
| Includes Auxiliary Contact | No |
| Fits Fuse Block Style | Non-Rejection |
| Fuse Block or Holder DC Voltage Rating | 300VDC |
| Fuse Block or Holder AC Voltage Rating | 600VAC |
| Package Quantity | 1 |
