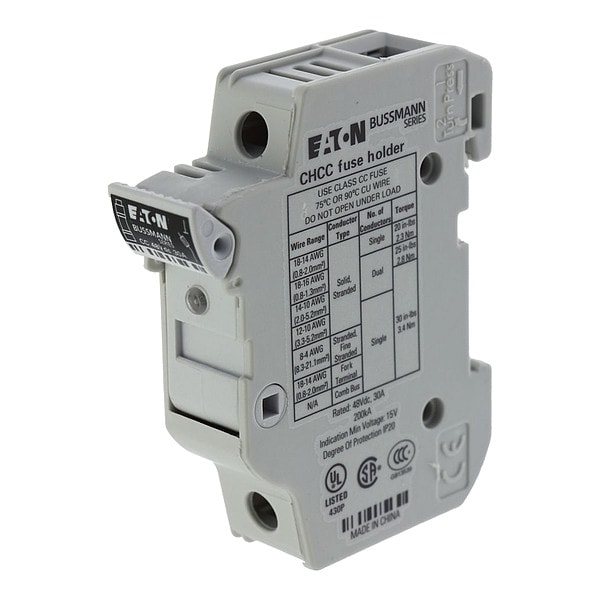

Finger Safe Fuse Block, CC UL Class, 1 Poles, 0 to 30A Amp Range, 48V DC Volt Rating
| CAD Available | Yes |
|---|---|
| Item | Finger Safe Fuse Block |
| UL Class | CC |
| Series | CHCC |
| Number of Poles | 1 |
| Amp Range | 0 to 30A |
| Voltage Rating | 48V DC |
| Connector Type | Box Lug, Clamp |
| Mounting Style | DIN-Rail |
| Visual Indication | Indicating |
| Wire Range | 12 AWG to 4 AWG |
| Fuse Block Design | Finger-Safe |
| Body Material | Thermoplastic |

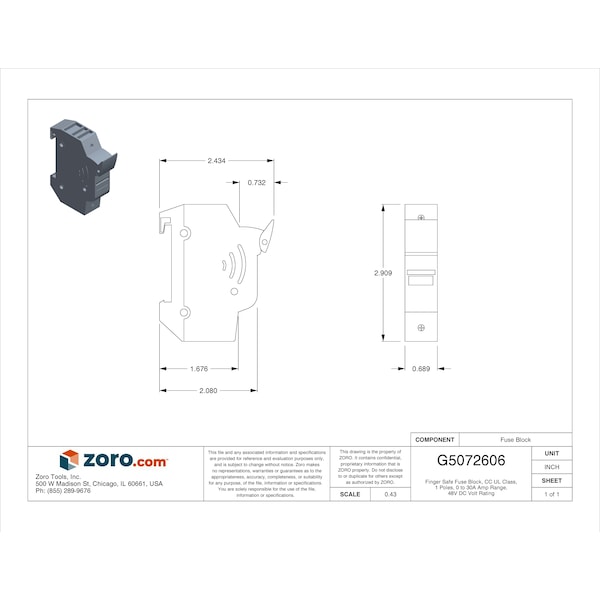

| Width | 0.69 in |
| Length | 2.91 in |
| Height | 2.43 in |
| Fuse Type | Industrial |
| Standards | CE, CSA Certified, UL Listed |
| Features | Finger Safe, Indication |
| For Fuse Series | FNQ-R, KTK-R, LP-CC |
| For Fuse Size | 1-1/2 in L x 13/32 in dia |
| Fits Fuse Type | Class CC |
| Includes Communication Feature | No |
| Includes Auxiliary Contact | No |
| Weight | 0.22 lb |
| Max. Operating Temp. | 120 deg C |
| Package Quantity | 1 |
