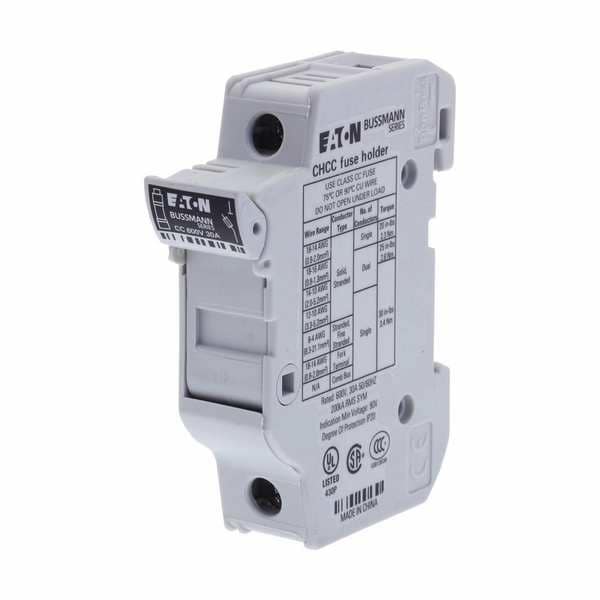

Fuse Holder, 0 to 30A Amp Range, 600V AC/DC Volt Rating, 1 Poles, Clamp/Spade Lug
| CAD Available | Yes |
|---|---|
| Item | Fuse Holder |
| UL Class | CC |
| Series | CHCC |
| Number of Poles | 1 |
| Amp Range | 0 to 30A |
| Voltage Rating | 600V AC/DC |
| Connector Type | Clamp, Spade Lug |
| Mounting Style | DIN-Rail |
| Visual Indication | Non-Indicating |
| Fuse Block Design | Finger-Safe |
| Body Material | Thermoplastic |

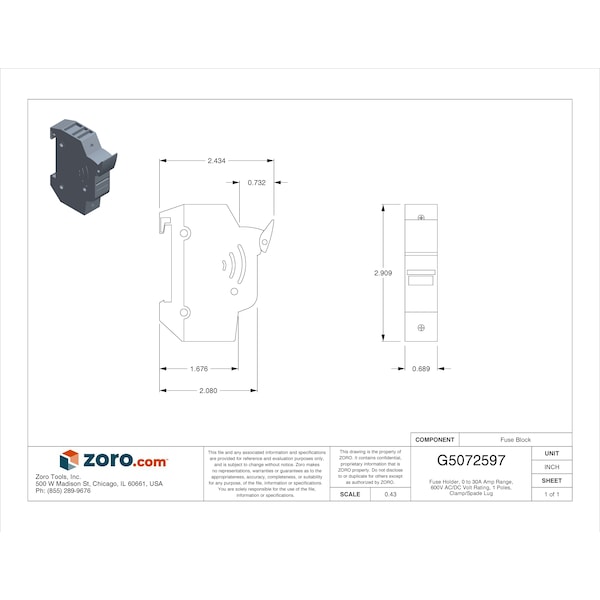

| Width | 0.69 in |
| Height | 2.43 in |
| For Fuse Series | FNQ-R, KTK-R, LP-CC |
| Features | Finger Safe |
| Fuse Type | Industrial |
| Fuse Block or Fuse Holder Type | Fuse Holder |
| Fuse UL Class | CC |
| Standards | CE, CSA Certified, UL Listed |
| Length | 2.91 in |
| For Fuse Size | 1-1/2 in L x 13/32 in dia |
| For Use With | For use with KTK-R, LP-CC and FNQ-R Class CC fuse |
| Wire Range | 18 AWG to 4 AWG |
| Fits Fuse Type | Class CC |
| Product Type | Finger-Safe Fuse Block |
| Includes Auxiliary Contact | No |
| Includes Communication Feature | No |
| Max. Operating Temp. | 120 deg C |
| Weight | 0.114 lb |
| For Fuse Class | CC |
| Max. Amps | 30 |
| Fits Fuse Block Style | Rejection |
| Max. Voltage | 600V AC/DC |
| Package Quantity | 1 |
