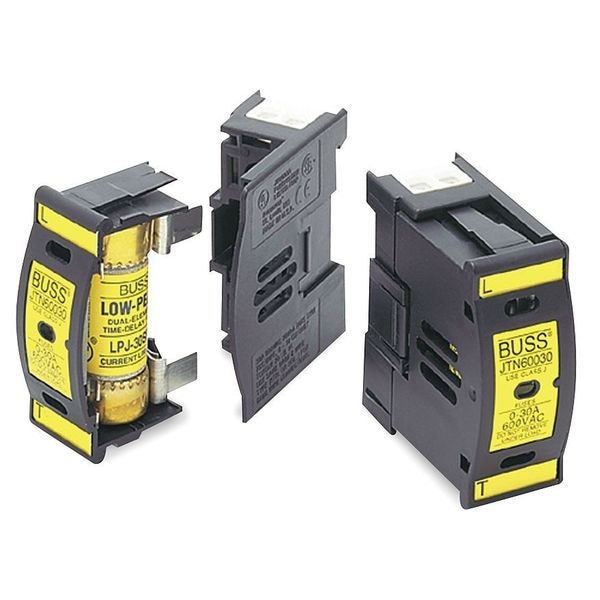

Fuse Holder, 1 Poles, 0 to 30A Amp Range, 600V AC Volt Rating
| Item | Fuse Holder |
|---|---|
| Series | JT |
| Number of Poles | 1 |
| Amp Range | 0 to 30A |
| Voltage Rating | 600V AC |
| Fits Fuse Type | Class J |
| Connector Type | Box Lug |
| Mounting Style | DIN-Rail |
| Visual Indication | Non-Indicating |
| Wire Range | 18 AWG to 8 AWG |
| Fuse Block Design | Finger-Safe |
| Body Material | Thermoplastic |
| Width | 2.52 in |
| Length | 2-3/4 in |
| Height | 3.6 in |
| For Fuse Series | LPJ, JKS |
| Fuse UL Class | J |
| Fuse Type | Industrial |
| Fuse Block or Fuse Holder Type | Finger Safe Fuse Block |
| Fuse Holder Code | Z |
| For Fuse Size | 2-1/4 in L x 13/16 in dia |
| Product Type | Finger-Safe Fuse Block |
| Weight | .233 LB |
| Includes Communication Feature | No |
| Includes Auxiliary Contact | No |
| Max. Voltage | 600 V AC |
| Fits Fuse Block Style | Non-Rejection |
| Max. Amps | 30 |
| For Fuse Class | J |
| Fuse Block or Holder DC Voltage Rating | 300VDC |
| Fuse Block or Holder AC Voltage Rating | 600VAC |
| Package Quantity | 1 |
