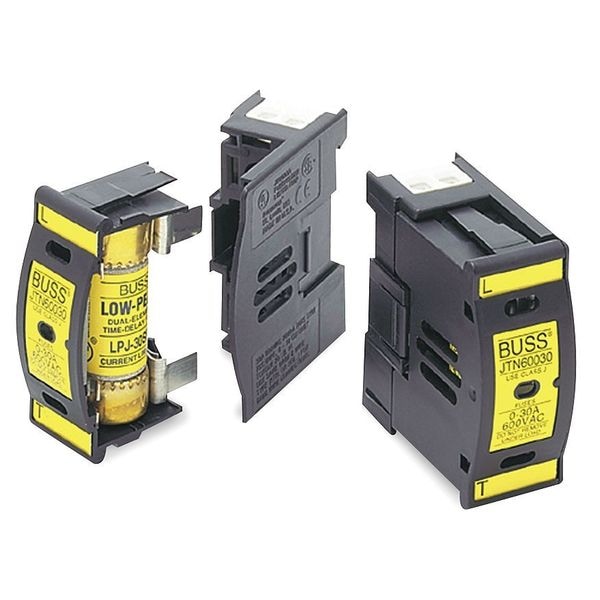

Fuse Holder, 1 Poles, 31 to 60A Amp Range, 600V AC Volt Rating
| CAD Available | Yes |
|---|---|
| Item | Fuse Holder |
| Series | JT |
| Number of Poles | 1 |
| Amp Range | 31 to 60A |
| Fits Fuse Type | Class J |
| Voltage Rating | 600V AC |
| Connector Type | Box Lug |
| Mounting Style | DIN-Rail |
| Visual Indication | Indicating |
| Wire Range | 14 AWG to 4 AWG |
| Fuse Block Design | Finger-Safe |
| Body Material | Thermoplastic |

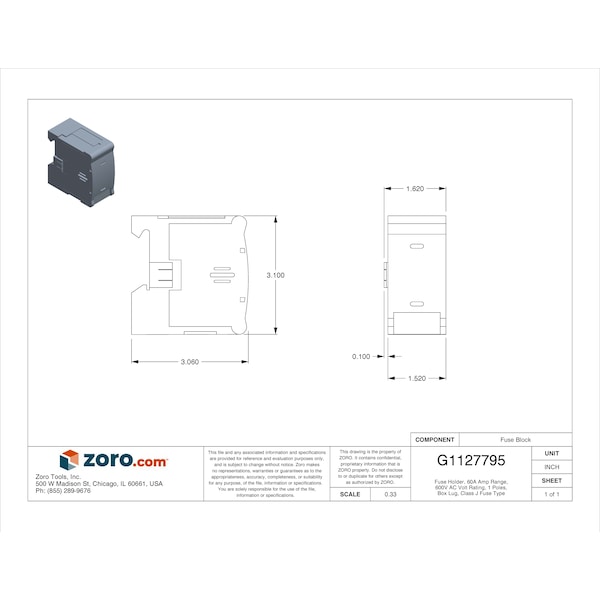

| Width | 3.06 in |
| Length | 4.4 in |
| Height | 3.1 in |
| For Fuse Series | LPJ, JKS |
| Fuse Holder Code | AA |
| Fuse Block or Fuse Holder Type | Finger Safe Fuse Block |
| Fuse UL Class | J |
| Fuse Type | Industrial |
| For Fuse Size | 2-3/8 in L x 1-1/16 in dia |
| Product Type | Finger-Safe Fuse Block |
| Weight | 0.438 lb |
| Max. Operating Temp. | 75 deg C |
| Includes Auxiliary Contact | No |
| Includes Communication Feature | No |
| Max. Voltage | 600 V AC |
| Fits Fuse Block Style | Non-Rejection |
| Max. Amps | 60 |
| For Fuse Class | J |
| Package Quantity | 1 |
