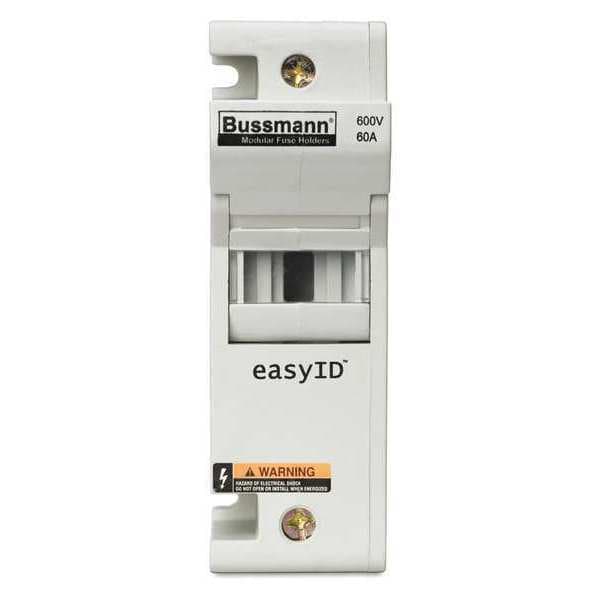

Fuse Holder, 1 Poles, 31 to 60A Amp Range, 600V AC/DC Volt Rating
| Item | Fuse Holder |
|---|---|
| Series | CH |
| Number of Poles | 1 |
| Amp Range | 31 to 60A |
| Voltage Rating | 600V AC/DC |
| Fits Fuse Type | Class J |
| Connector Type | Box Lug |
| Mounting Style | DIN-Rail |
| Visual Indication | Indicating |
| Wire Range | 18 AWG to 3 AWG, 18 AWG to 1 AWG |
| Fuse Block Design | Finger-Safe |
| Body Material | Thermoplastic |
| Width | 1.58 in |
| Length | 4.88 in |
| Height | 3.31 in |
| Fuse Block or Fuse Holder Type | Fuse Holder |
| For Fuse Series | LPJ, JKS, DFJ |
| Standards | CE, CSA Certified, UL Listed |
| Fuse Type | Industrial |
| Fuse UL Class | J |
| Features | Finger Safe, Indication |
| For Fuse Size | 2-3/8 in L x 1-1/16 in dia |
| Product Type | Finger-Safe Fuse Block |
| Includes Communication Feature | No |
| Includes Auxiliary Contact | No |
| Weight | 0.511 lb |
| Max. Operating Temp. | 85 deg C |
| For Fuse Class | J |
| Max. Voltage | 600V AC/DC |
| Fits Fuse Block Style | Non-Rejection |
| Max. Amps | 30 |
| Fuse Block or Holder DC Voltage Rating | Not Rated |
| Package Quantity | 1 |
