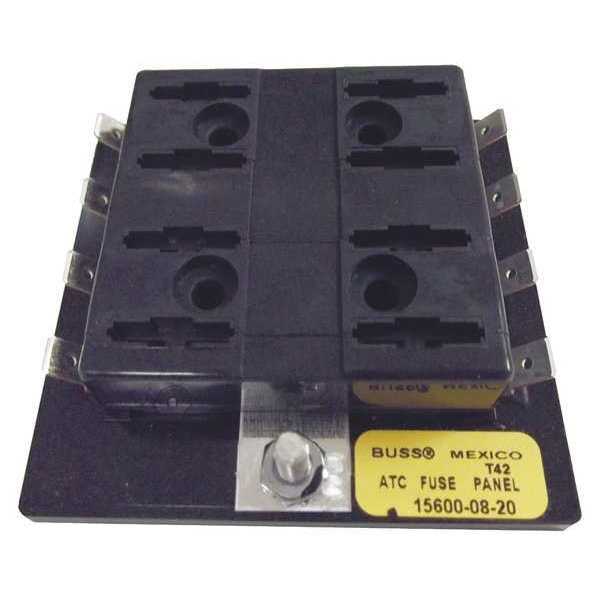

Fuse Panel, 0 to 30A Amp Range, 32V DC Volt Rating, 8 Poles, Quick Connect, Automotive Fuse Type
| Item | Fuse Panel |
|---|---|
| Amp Range | 0 to 30A |
| Voltage Rating | 32V DC |
| Number of Poles | 8 |
| Connector Type | Quick Connect |
| Fits Fuse Type | Automotive |
| Height | 0.8 in |
| For Fuse Series | ATC |
| Mounting Style | Bolt-Down |
| Fuse Block Design | Open |
| Fuse UL Class | Not Class Rated |
| Length | 3.09 in |
| Body Material | Thermoplastic |
| Fuse Block or Fuse Holder Type | Fuse Block |
| Width | 3.37 in |
| Standards | UL Rated 94VO |
| Fuse Type | Automotive |
| Series | 15600 |
| For Fuse Size | 3/4 in L x 3/4 in W x 13/64 in dia |
| Wire Range | 16 AWG to 12 AWG, 6 AWG to 4 AWG |
| Visual Indication | Non-Indicating |
| Max. Operating Temp. | 150 °F |
| Weight | .023 LB |
| Fits Fuse Block Style | Non-Rejection |
| Max. Voltage | 32V DC |
| For Fuse Class | Not Class Rated |
| Max. Amps | 30 |
| Package Quantity | 1 |
