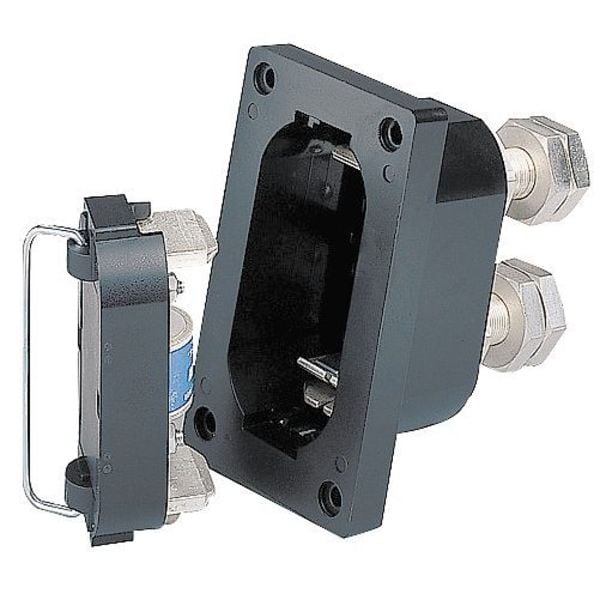

Fused Disconnect System, 70 to 800A Amp Range, 60V DC Volt Rating, 1 Poles, Wire Leads
| Item | Fused Disconnect System |
|---|---|
| Amp Range | 70 to 800A |
| Voltage Rating | 60V DC |
| Number of Poles | 1 |
| Connector Type | Wire Leads |
| Fits Fuse Type | Telecom Protection |
| Width | 4 in |
| Height | 7 in |
| Series | 15000 |
| Visual Indication | Non-Indicating |
| Mounting Style | Threaded with Locknut |
| Fuse Block Design | Covered |
| Wire Range | 3/0 AWG to 350 MCM |
| Fuse UL Class | Not Class Rated |
| For Fuse Size | 3-1/2 in L x 1-1/2 in dia |
| Length | 6-3/4 in |
| Weight | 6.54 lb |
| Max. Voltage | 60V DC |
| For Fuse Class | Not Class Rated |
| Max. Amps | 800 |
| Fits Fuse Block Style | Non-Rejection |
| Package Quantity | 1 |
