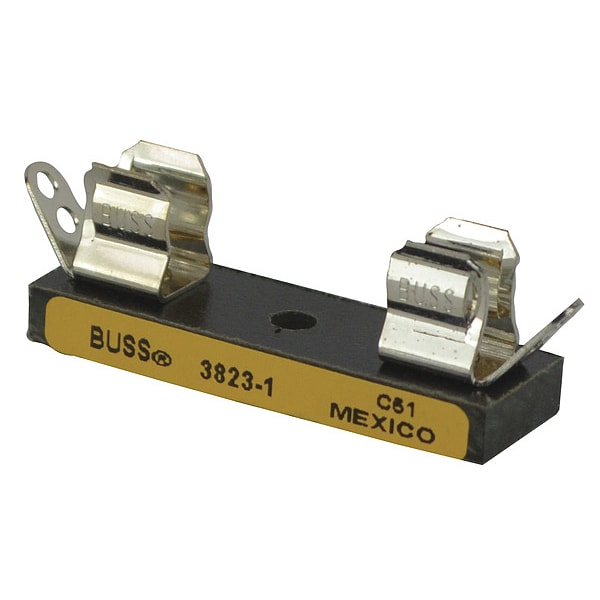

Open Fuse Block, 1 Poles, 0 to 30A Amp Range, 250V AC/125V DC Volt Rating
| Item | Open Fuse Block |
|---|---|
| Series | 3823 |
| Number of Poles | 1 |
| Amp Range | 0 to 30A |
| Voltage Rating | 250V AC/125V DC |
| Connector Type | Solder |
| Mounting Style | Bolt-Down |
| Visual Indication | Non-Indicating |
| Fuse Block Design | Open |
| Body Material | Polyester |
| Height | 1-1/4 in |
| Length | 1/4 in |
| Fuse Type | Ceramic, Glass |
| Width | 1/4 in |
| For Fuse Series | ABC, AGC, AGX, MDA, MDL, MDM, MDQ, TFF, TFL, TGH |
| For Fuse Size | 1-1/4 in L x 1/4 in dia |
| Fits Fuse Type | Glass, Ceramic |
| Fits Fuse Block Style | Non-Rejection |
| Package Quantity | 1 |
