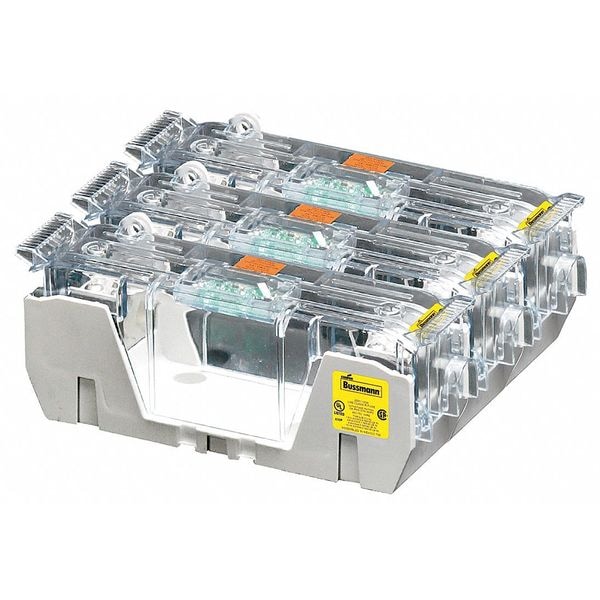

Open Fuse Block, 450 to 600A Amp Range, 250V AC/DC Volt Rating, 3 Poles, Box Lug
| Item | Open Fuse Block |
|---|---|
| UL Class | H, K5 |
| Series | HM |
| Number of Poles | 3 |
| Amp Range | 450 to 600A |
| Voltage Rating | 250V AC/DC |
| Connector Type | Box Lug |
| Mounting Style | Bolt-Down |
| Visual Indication | Non-Indicating |
| Spring Reinforced Clip | Yes |
| Fuse Block Design | Open |
| Body Material | Thermoplastic |
| Height | 5.3 in |
| Length | 11.41 in |
| Fuse Type | Industrial |
| Width | 14.8 in |
| Standards | CSA Certified, UL Listed |
| For Fuse Series | NON |
| Fuse Holder Code | BL |
| For Fuse Size | 10-3/8 in L x 2-19/32 in dia |
| Fits Fuse Type | Industrial |
| Wire Range | 4 AWG to 500 MCM |
| Short Circuit Current (KA) | 10 kA |
| Weight | 12.2 lb |
| Fits Fuse Block Style | Non-Rejection |
| Package Quantity | 1 |
