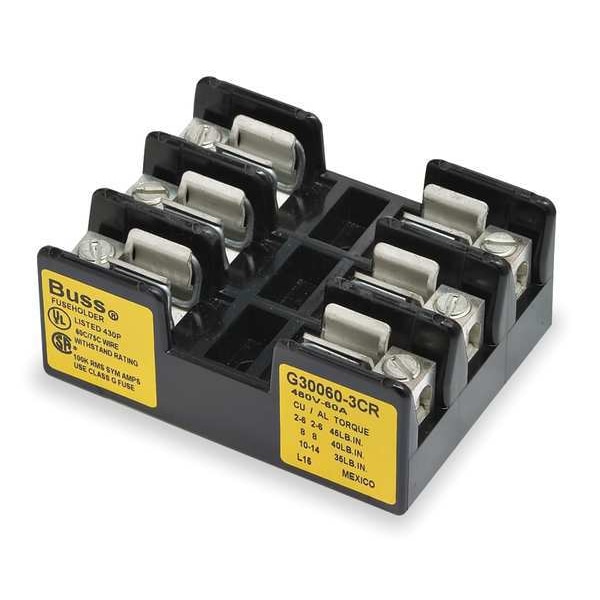

Open Fuse Block, G UL Class, 3 Poles, 31 to 60A Amp Range, 300V AC/DC Volt Rating
| Item | Open Fuse Block |
|---|---|
| UL Class | G |
| Series | G |
| Number of Poles | 3 |
| Amp Range | 31 to 60A |
| Voltage Rating | 300V AC/DC |
| Connector Type | Box Lug |
| Mounting Style | Bolt-Down |
| Visual Indication | Non-Indicating |
| Fuse Block Design | Open |
| Body Material | Polyester |
| Length | 3.56 in |
| Width | 2-3/4 in |
| For Fuse Series | SC |
| Fuse Type | Industrial |
| Height | 1.41 in |
| Standards | CSA Certified, UL Listed |
| Fuse Holder Code | AK |
| For Fuse Size | 2-1/4 in L x 7/16 in dia |
| Fits Fuse Type | Industrial |
| Wire Range | 8 AWG to 2 AWG, 14 AWG to 2 AWG |
| Weight | 0.442 lb |
| Fits Fuse Block Style | Non-Rejection |
| Fuse Block or Holder AC Voltage Rating | 480VAC |
| Fuse Block or Holder DC Voltage Rating | 300VDC |
| Package Quantity | 1 |
