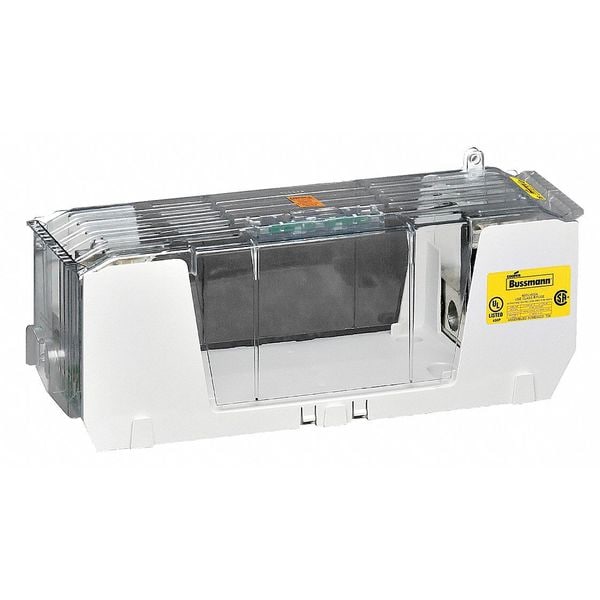

Open Fuse Block, H; K5 UL Class, 1 Poles, 450 to 600A Amp Range, 600V AC/DC Volt Rating
| Item | Open Fuse Block |
|---|---|
| UL Class | H, K5 |
| Series | HM |
| Number of Poles | 1 |
| Amp Range | 450 to 600A |
| Voltage Rating | 600V AC/DC |
| Connector Type | Box Lug |
| Mounting Style | Bolt-Down |
| Visual Indication | Non-Indicating |
| Spring Reinforced Clip | Yes |
| Wire Range | 4 AWG to 500 MCM |
| Fuse Block Design | Open |
| Body Material | Thermoplastic |
| Width | 4.91 in |
| Length | 14.4 in |
| Height | 6 in |
| Standards | CSA Certified, UL Listed |
| For Fuse Series | NOS |
| Fuse Holder Code | U |
| Fuse Type | Industrial |
| For Fuse Size | 13-3/8 in L x 3-1/8 in dia |
| Fits Fuse Type | Industrial |
| Weight | 4.14 lb |
| Short Circuit Current (KA) | 10 kA |
| Fits Fuse Block Style | Non-Rejection |
| Package Quantity | 1 |
