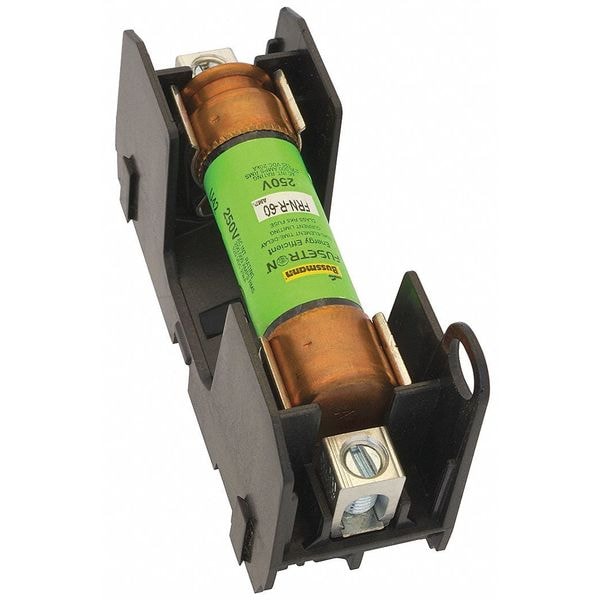

Open Fuse Block, H; K5 UL Class, 2 Poles, 35 to 60A Amp Range, 250V AC/DC Volt Rating
| Item | Open Fuse Block |
|---|---|
| UL Class | H, K5 |
| Series | HM |
| Number of Poles | 2 |
| Amp Range | 35 to 60A |
| Voltage Rating | 250V AC/DC |
| Connector Type | Box Lug |
| Mounting Style | Bolt-Down; DIN Rail |
| Visual Indication | Non-Indicating |
| Spring Reinforced Clip | Yes |
| Wire Range | 14 AWG to 2 AWG |
| Fuse Block Design | Open |
| Body Material | Thermoplastic |
| Width | 2.7 in |
| Length | 5.3 in |
| Height | 2.3 in |
| For Fuse Series | NON |
| Fuse Type | Industrial |
| Fuse Holder Code | K |
| Standards | CE, CSA Certified, REACH, RoHS, UL Listed |
| For Fuse Size | 3 in L x 13/16 in dia |
| Fits Fuse Type | Industrial |
| Weight | .3 LB |
| Short Circuit Current (KA) | 10 kA |
| Fits Fuse Block Style | Non-Rejection |
| Package Quantity | 1 |
