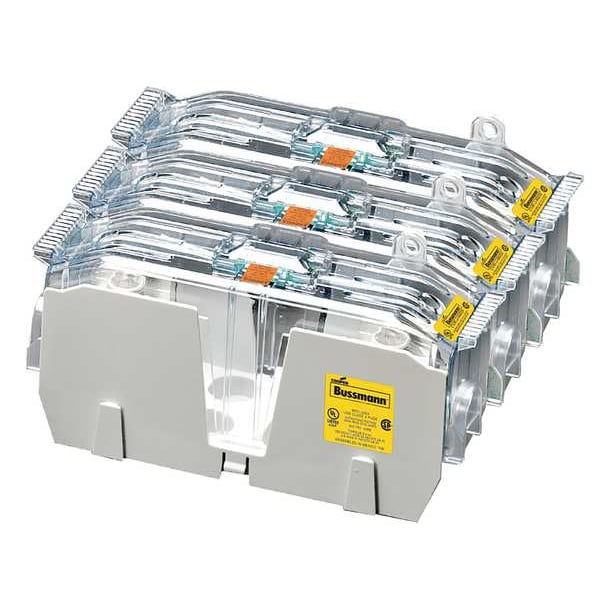

Open Fuse Block, J UL Class, 3 Poles, 110 to 200A Amp Range, 600V AC/DC Volt Rating

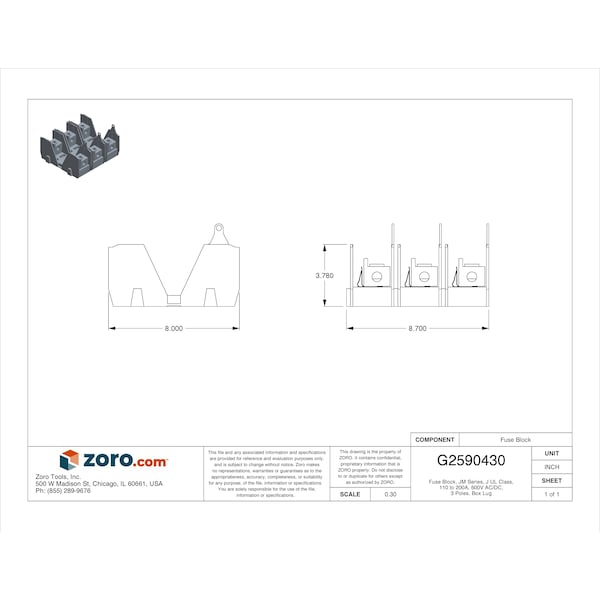

| CAD Available | Yes |
|---|---|
| Item | Open Fuse Block |
| UL Class | J |
| Series | JM |
| Number of Poles | 3 |
| Amp Range | 110 to 200A |
| Voltage Rating | 600V AC/DC |
| Connector Type | Box Lug |
| Mounting Style | Bolt-Down; DIN Rail |
| Visual Indication | Non-Indicating |
| Spring Reinforced Clip | Yes |
| Wire Range | 6 AWG to 2 AWG |
| Fuse Block Design | Open |
| Body Material | Thermoplastic |
| Width | 8 in |
| Length | 8.7 in |
| Height | 3.8 in |
| Standards | CSA Certified, UL Listed |
| Fuse Type | Industrial |
| For Fuse Series | LPJ, JKS, DFJ |
| Features | Short Circuit Protection |
| Fuse Holder Code | AC |
| For Fuse Size | 5-3/4 in L x 1-1/2 in dia, 5-3/4 in L x 1-5/8 in dia |
| Fits Fuse Type | Industrial |
| Short Circuit Current (KA) | 200 kA |
| Weight | 2.42 lb |
| Fits Fuse Block Style | Non-Rejection |
| Package Quantity | 1 |
