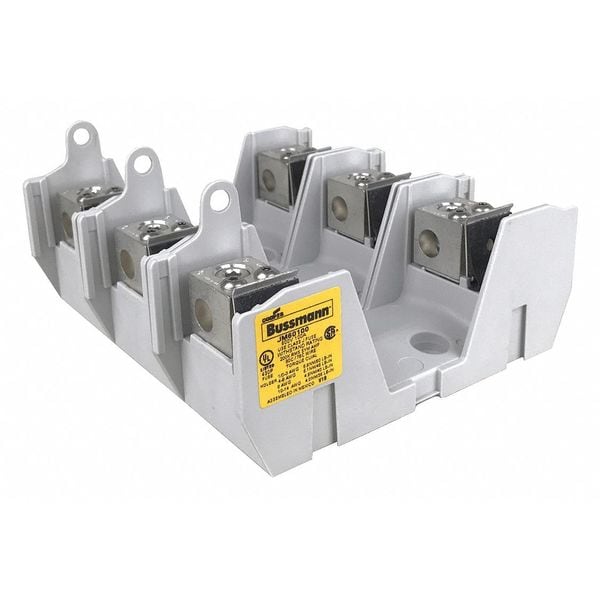

Open Fuse Block, J UL Class, 3 Poles, 70 to 100A Amp Range, 600V AC/DC Volt Rating
| Item | Open Fuse Block |
|---|---|
| UL Class | J |
| Series | JM |
| Number of Poles | 3 |
| Amp Range | 70 to 100A |
| Voltage Rating | 600V AC/DC |
| Connector Type | Box Lug |
| Mounting Style | Bolt-Down; DIN Rail |
| Visual Indication | Non-Indicating |
| Spring Reinforced Clip | Yes |
| Fuse Block Design | Open |
| Body Material | Thermoplastic |
| Standards | CSA Certified, UL Listed |
| Fuse Holder Code | AB |
| Features | No Cover included, Short Circuit Protection |
| Width | 6 in |
| Length | 7.81 in |
| Fuse Type | Industrial |
| Height | 2.8 in |
| For Fuse Series | LPJ, JKS, DFJ |
| For Fuse Size | 4-5/8 in L x 1-1/8 in dia |
| Wire Range | 14 AWG to 10 AWG, 12 AWG to 10 AWG |
| Fits Fuse Type | Industrial |
| Short Circuit Current (KA) | 200 kA |
| Weight | 0.95 lb |
| Fits Fuse Block Style | Non-Rejection |
| Package Quantity | 1 |
