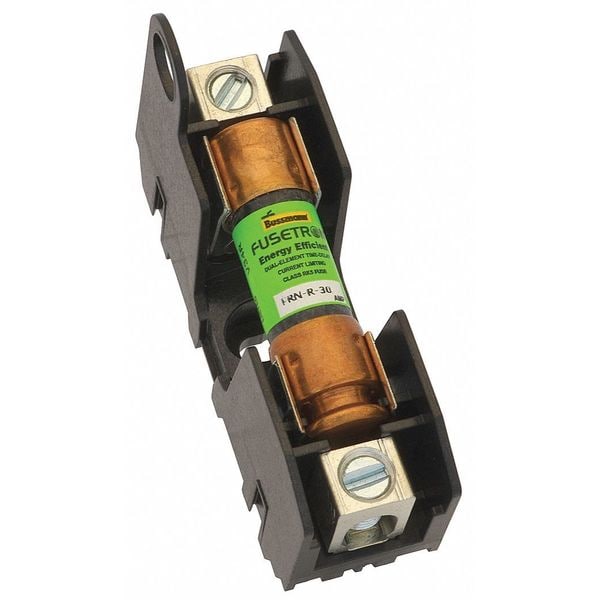

Open Fuse Block, R UL Class, 1 Poles, 0 to 30A Amp Range, 250V AC/DC Volt Rating
| Item | Open Fuse Block |
|---|---|
| UL Class | R |
| Series | RM |
| Number of Poles | 1 |
| Amp Range | 0 to 30A |
| Voltage Rating | 250V AC/DC |
| Connector Type | Box Lug |
| Mounting Style | Bolt-Down; DIN Rail |
| Visual Indication | Non-Indicating |
| Wire Range | 14 AWG to 2 AWG |
| Fuse Block Design | Open |
| Body Material | Thermoplastic |
| Width | 1 in |
| Length | 3.2 in |
| Height | 2 in |
| Fuse Holder Code | H |
| Fuse Type | Industrial |
| For Fuse Series | FRN, FRS, KTN-R, KTS-R, KWN-R, LPN, LPS |
| Standards | CE, CSA Certified, REACH, RoHS, UL Listed |
| For Fuse Size | 2 in L x 9/16 in dia |
| Fits Fuse Type | Industrial |
| Weight | 0.091 lb |
| Fits Fuse Block Style | Rejection |
| Package Quantity | 1 |
