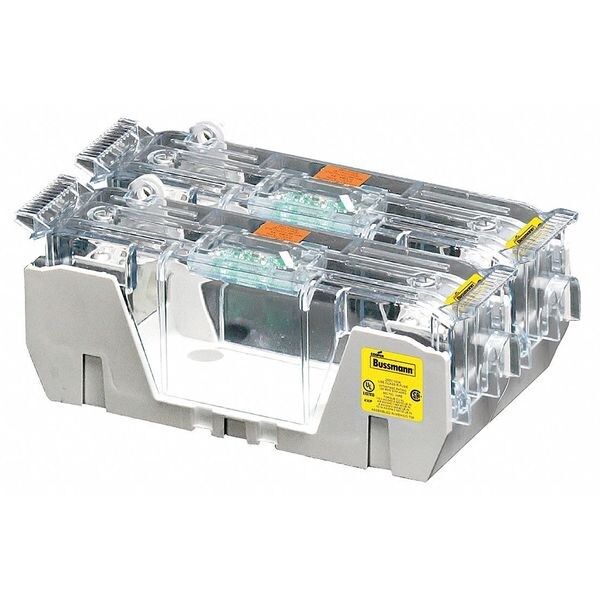

Open Fuse Block, R UL Class, 2 Poles, 450 to 600A Amp Range, 250V AC/DC Volt Rating
| Item | Open Fuse Block |
|---|---|
| UL Class | R |
| Series | RM |
| Number of Poles | 2 |
| Amp Range | 450 to 600A |
| Voltage Rating | 250V AC/DC |
| Connector Type | Box Lug |
| Mounting Style | Bolt-Down; DIN Rail |
| Visual Indication | Non-Indicating |
| Fuse Block Design | Open |
| Body Material | Thermoplastic |
| For Fuse Series | FRN, FRS, KTN-R, KTS-R, LPN, LPS |
| Features | Protection Against Single Phase Motor Damage |
| Height | 5.61 in |
| Standards | CSA Certified, UL Listed |
| Fuse Type | Industrial |
| Length | 12.11 in |
| Fuse Holder Code | BL |
| Width | 9.91 in |
| For Fuse Size | 10-3/8 in L x 2-7/8 in dia |
| Fits Fuse Type | Industrial |
| Wire Range | 4 AWG to 500 MCM |
| Weight | 8.18 lb |
| Fits Fuse Block Style | Rejection |
| Package Quantity | 1 |
