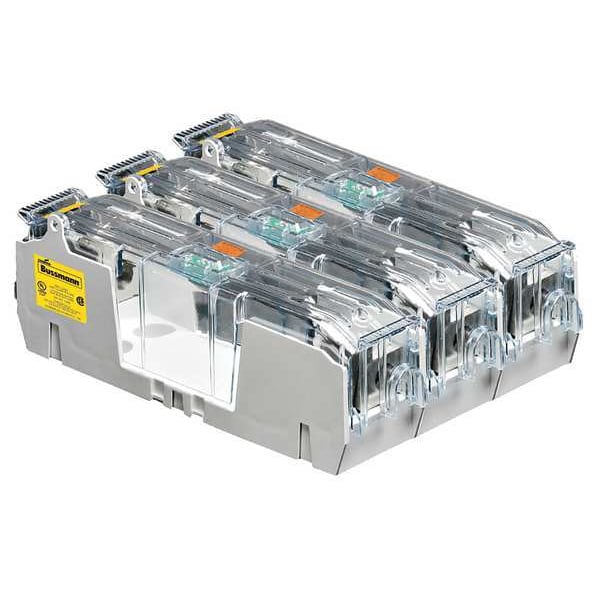

Open Fuse Block, R UL Class, 3 Poles, 110 to 200A Amp Range, 600V AC/DC Volt Rating
| Item | Open Fuse Block |
|---|---|
| UL Class | R |
| Series | RM |
| Number of Poles | 3 |
| Amp Range | 110 to 200A |
| Voltage Rating | 600V AC/DC |
| Connector Type | Box Lug |
| Mounting Style | Bolt-Down; DIN Rail |
| Visual Indication | Non-Indicating |
| Wire Range | 6 AWG to 2 AWG |
| Fuse Block Design | Open |
| Body Material | Thermoplastic |
| Width | 2.61 in |
| Length | 11.2 in |
| Height | 3.8 in |
| Fuse Holder Code | S |
| Fuse Type | Industrial |
| Features | Short Circuit and Overload Protection |
| Standards | CSA Certified, UL Listed |
| For Fuse Series | FRN, FRS, KTN-R, KTS-R, LPN, LPS |
| For Fuse Size | 7-1/8 in L x 1-9/16 in dia |
| Fits Fuse Type | Industrial |
| Weight | 2.7 lb |
| Fits Fuse Block Style | Rejection |
| Package Quantity | 1 |
