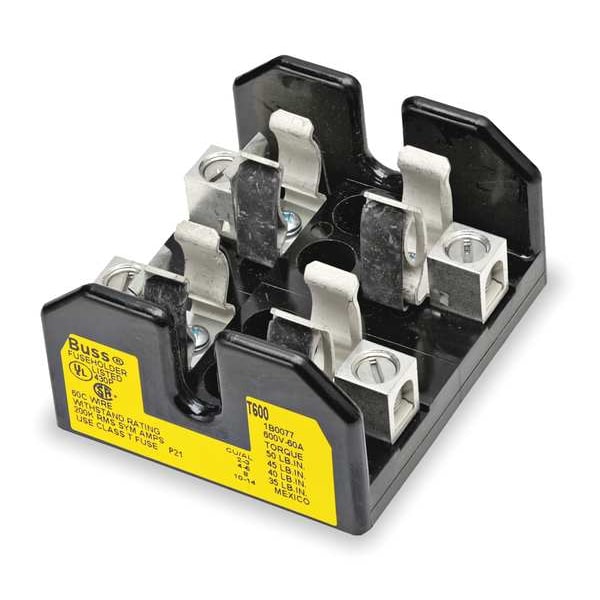

Open Fuse Block, T UL Class, 2 Poles, 31 to 60A Amp Range, 600V AC/DC Volt Rating
| Item | Open Fuse Block |
|---|---|
| UL Class | T |
| Series | T600 |
| Number of Poles | 2 |
| Amp Range | 31 to 60A |
| Voltage Rating | 600V AC/DC |
| Connector Type | Box Lug |
| Mounting Style | Bolt-Down |
| Visual Indication | Non-Indicating |
| Wire Range | 14 AWG to 2 AWG, 18 AWG to 10 AWG |
| Fuse Block Design | Open |
| Body Material | Polyester |
| Width | 3.34 in |
| Length | 2.94 in |
| Height | 1-3/4 in |
| Fuse Type | Industrial |
| Fuse Holder Code | BM |
| Standards | CSA Certified, UL Listed |
| Features | Flame Resistance |
| For Fuse Series | JJS, LPT |
| For Fuse Size | 1-9/16 in L x 13/16 in dia |
| Fits Fuse Type | Industrial |
| Weight | 0.392 lb |
| Short Circuit Current (KA) | 200 kA |
| Fits Fuse Block Style | Non-Rejection |
| Fuse Block or Holder DC Voltage Rating | Not Rated |
| Package Quantity | 1 |
