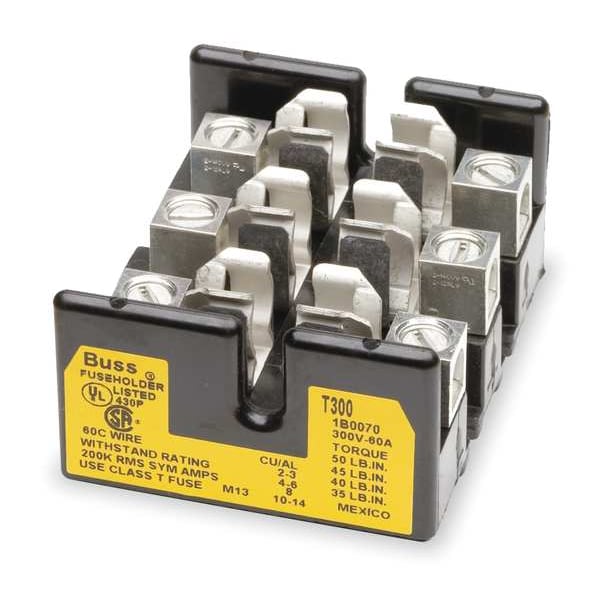

Open Fuse Block, T UL Class, 3 Poles, 0 to 30A Amp Range, 300V AC/DC Volt Rating
| Item | Open Fuse Block |
|---|---|
| UL Class | T |
| Series | T300 |
| Number of Poles | 3 |
| Amp Range | 0 to 30A |
| Voltage Rating | 300V AC/DC |
| Connector Type | Box Lug |
| Mounting Style | Bolt-Down |
| Visual Indication | Non-Indicating |
| Fuse Block Design | Open |
| Body Material | Polyester |
| Fuse Type | Industrial |
| Height | 1.63 in |
| Width | 3.44 in |
| Length | 2-3/4 in |
| Features | Space Saver |
| For Fuse Series | JJN |
| Standards | CSA Certified, UL Listed |
| For Fuse Size | 7/8 in L x 13/32 in dia |
| Fits Fuse Type | Industrial |
| Wire Range | 14 AWG to 6 AWG, 18 AWG to 10 AWG |
| Weight | 0.001 lb |
| Short Circuit Current (KA) | 200 kA |
| Fits Fuse Block Style | Non-Rejection |
| Package Quantity | 1 |
